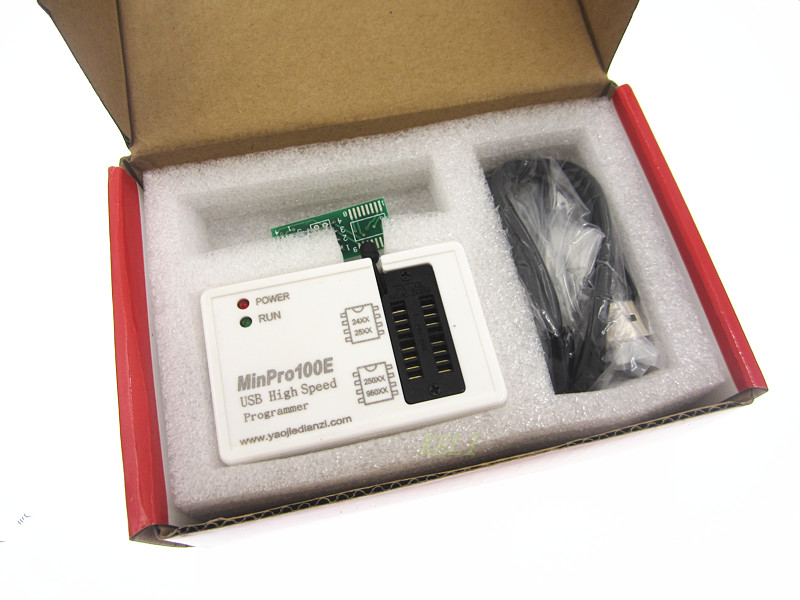

MinPro100E programmer BIOS SPI FLASH 24/25/95 USB memory reader writer

1 using 50M USB2.0 high speed MCU

The integrated USB2.0 data transmission interface 2 system, ensure the burning speed

3 support for a wide range of chips: including the most commonly used 25 FLASH SPI, 24 EEPROM, 25 EEPROM, 95EEPROM,

4 perfect function of the host computer programming software, full of Chinese humanistic operation interface

5 support chips wipe, write, check automatic recording

6 independent color box packing, noble

7 automatic identification of 2425 burning chip capacity

8 burning voltage automatic switching, support 3.3V 5V chip burning voltage

9 perfect hardware system and firmware protocol, and the algorithm is completely implemented by software.

10 beautiful appearance, the use of computer CNC shell, compact and convenient.

11 support Windows2000, XP, Vista, 32/64 Win7 and other operating systems

================================================================================

MinPro100E high speed USB universal programmer

Full support:

25 series FLASH SPI (BIOS chip)

24 series EEPROM I2C (LCD, memory, motherboard, TV, set top box)

95 Series EEPROM (Automotive)

25 series EEPROM

================================================================================

Chip support list:

The following list is not the type of burn, can choose the same capacity (these types, read and write)

Maximum support 256M chip, SST series 25 chip can be read and written.

AMIC:

A25L10P A25L020 A25L20P A25L040 A25L010 A25L40P A25L080 A25L80P A25L016 A25L16P A25L032 A25L064 A25L128 A25L256

ATMEL:

AT25FS010

AT26F004 AT26DF081A AT25DF161 AT25FS040

AT25F2048 AT25F4096 AT25F512

CFEON EON:

EN25D10 E25F10 EN25LF10 EN25P10 EN25D20 EN25F20 EN25LF20 EN25D40 EN25F40 EN25LF40 EN25D80 EN25F80 EN25Q80 EN25T80 EN25B16 EN25B16T EN25D16 EN25F16 E25Q16 EN25T16 EN25B32 EN25B32T EN25F32 EN25P32 EN25Q32 EN25B64 EN25B64T EN25F64 EN25P64 EN25P128 EN25P256

ES:

ES25P20 ES25M40 ES25M40A ES25P10 ES25P40 ES25M80 ES25M80A ES25P80 ES25M16 ES25M16A ES25P16 ES25P32 ES25P64 ES25P128 ES25P256

ESMT:

F25L16PA F25L32PA F25L32QA F2525L64 F25L128 F25L08PA F25L256

FIGADEVICE:

GD25Q20 GD25D40 GD25F40 GD25Q40 GD25Q10 GD25D80 GD25F80 GD25Q80 GD25T80 GD25Q16 GD25Q32 GD25Q64 GD25Q128 GD25Q256

MXIC:

MX25L2005 MX25L4005A MX25V4005 MX25V8005 MX25L1005 MX25L1605D MX251635D MX25L3205D MX25L3206E MX25L3225D MX25L3235D MX25L3237D MX25L6405D MX25L6445DMX25L128MX25L256

KH25L16 KH25L32 KH25L64 KH25L128 KH25L80

NexFlash:

NX25P10, NX25P20, NX25P40, NX25P80, NX25P16, NX25P32, NX25P64, NX25P128, NX25P256,

PMC:

PM25LV080B, PM25LV016B, Pm25LV512, Pm25LV010, Pm25LV020, Pm25LV040, Pm25LV080, Pm25LV016, Pm25LV032, Pm25LV064,

, PM25LV128, PM25LV256

SPANSION:

S25FL008A S25FL016A S25FL032A S25FL032P S25FL064A S25FL128, S25FL004A, S25FL256

SST:

SST25VF010, SST25VF10, SST25VF20, SST25VF020, SST25VF40,

SST25VF040, SST25VF80, SST25VF080, SST25VF16, SST25VF016,

SST25VF32, SST25VF032, SST25VF64, SST25VF064,

SST25VF0128, SST25VF128, SST25VF256

(read and write! Taobao CH341A programmer, SST series can not be written, read only.)

Semiconductors: Saifun

SA25C020, SA25F040, SA25F080, SA25F160, SA25F320, SA25F640, SA25F128, SA25F256,

ST:

M25PE10 M25P20 M25PE20 M25P10A M25P40 M25PE40 M25P80 M25PE80 M25PX80 M25P16 M25PE16 M25PX16 M25P32 M25PX32 M25P64 M25PX64 M25P128,, M25P256,

25P05VP

WINBOND:

W25X10 W25X10A W25X10AL W25X10L W25X05 W25X20 W25X20A W25X20AL W25X20L W25X40

W25X40A W25X40AL W25X40L W25P80 W25X80 W25Q80 W25X80A W25X80AL W25X80L W25P16 W25X16 W25Q16 W25P32 W25X32 W25Q32 W25X64 W25Q64 W25P64W25X128 W25Q128 W25P128W25Q256 (WINBOND 25 series, all products support)

SANYO:

25FW40 25FW41 25FW80 25FW20

==24 series chip BIOS = storage

24C02 24C04 24C08 24C16 24C01 24C32 24C64 24C128 24C256 24C512 24C1024 24C2048

AT24C01 AT24C02 AT24C04 AT24C08 AT24C16 AT24C32 AT24C64 AT24C128 AT24C128-5V AT24C128-3V AT24C128A AT24C128B AT24C256-5V AT24C256-3V AT24C256A AT24C256B AT24C512-5V AT24C512-3V AT24C512A AT24C512B AT24C1024 AT24C1024A AT24C1024B

FM24CL02 FM24CL04 FM24CL08 FM24CL16 FM24CL01 FM24CL32 FM24CL64 FM24CL128 FM24CL256

HOLTEK:

HT24LC01 HT24C02 HT24C01 HT24LC02 HT24C04 HT24LC04 HT24C08 HT24LC08 HT24C16 HT24LC16 HT24C32 HT24LC32 HT24C64 HT24LC64 HT24C128 HT24LC128 HT24C256 HT24LC256 HT24C512 HT24C1024

ISSI:

IS24C02 IS24C04 IS24C08 IS24C01 IS24C16 IS24C32 IS24C64 IS24C128 IS24C256 IS24C512 IS24C1024

CATALYST:

CAT24C01 CAT24WC01 CAT24C02 CAT24WC02 CAT24C04 CAT24WC04 CAT24C08 CAT24WC08 CAT24C16 CAT24WC16 CAT24C32 CAT24WC32 CAT24C64 CAT24WC64 CAT24C128 CAT24WC128 CAT24C256 CAT24WC256 CAT24C512 CAT24WC512 CAT24C1024 CAT24WC1024

MICROCHIP:

24AA00 24C00 24LC00 24AA01 24AA014 24C01A 24C01C 24LC01 24LC21 24LCS21 24VL01 24AA02 24AA024 24AA025 24C02A 24C02C 24LC024 24LC025 24LC22A 24LC02B 24LCS22A 24VL02 24AA04 24C04A 24LC04 24AA08 24C08B 24LC08B 24AA16 24C16B 24LC16B 24AA32 24C32A 24LC32 24AA64 24FC64 24LC64 24AA65 24C65 24LC65 24AA128 24FC128 24LC128 24AA256 24FC256 24LC256 24AA512 24FC512 24LC512 24AA515 24FC515 24LC515 24AA1025 24AA1026 24FC1025 24FC1026 24LC1025 24LC1026

ROHM:

BR24L01 BR24C02 BR24L02 BR24C04 BR24C01 BR24L04 BR24C08 BR24L08 BR24C16 BR24L16 BR24C32 BR24
