 ÑÇÓã ÅÔÇÑÉ Oscilloscope

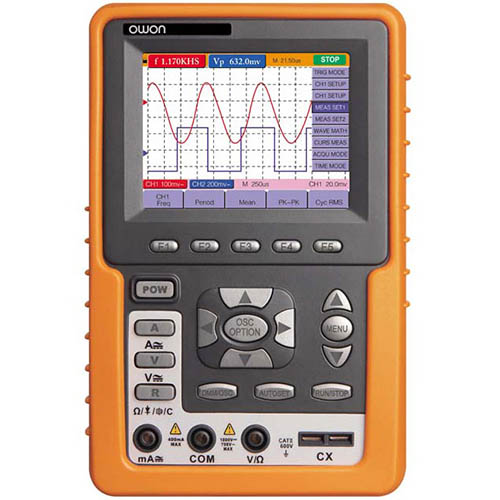

 HDS1021M

 Owon HDS1021M 20 MHz Handheld
  Digital Storage Oscilloscope





Performance Specifications

Model

HDS1021M-N

Bandwidth

20MHz

Sample  Rate (real time )

100mS/s

Horizontal  Scale (s/div)

5ns/div~100s/div, step by 1~2.5~5

Rise  Time (at input, typical)

≤ 17.5ns

Display

3.7 inch color  display with TFT panel (640 × 480 pixels, 65535 colors)

Channel

singel

Input  Impedance

1MΩ ± 2%, in parallel with 15pF ± 5pF

Record  Length

max 6K points  on each channel

Interpolation

sin (x) / x

Probe  Attenuation Factor

1X,10X,100X,1000X

Input  Coupling

DC, AC, and GND

DC  Accuracy (average)

average >16  : ±(5% reading + 0.05div) for V

Vertical  Sensitivity

5mV/div~5V/div (at input)

Vertical  Resolution (A/D)

8 bits (2  channels simultaneously )

Max  Input Voltage

400V (PK - PK)  (DC + AC, PK - PK, 1MΩ input impedance, probe attenuation 10 : 1), CAT  II

Trigger  Type

Edge, Video,  Alternate

Trigger  Mode

Auto, Normal,  Single

Trigger  Level

±6 divisions  from screen center

Acquisition  Mode

Sample, Peak  Detect, and Average

DC  Gain Accuracy

±3%

Waveform  Math

+, -, ×, ÷, invert, FFT

Waveform  Storage

4 waveforms

Lissajous

Figure

Bandwidth

full bandwidth

Phase  Difference

±3 degrees

Communication  Interface

USB

Power  Supply

100V-240V AC,  50/60Hz

Li-ion  Battery

7.4V, 6 hours  operation

Dimensions (W × H × D)

180 × 115 × 40  (mm)

Weight (without package)

645 g

MultimeterSpecifications

Full Scale Reading

3  .3/4digits(max4000 count)

Diode

0V-1.5V

Input Impedance

10MΩ

On/Off Test

<50(+-30)beeping

Voltage

VDC : 400mV, 4V,  40V, 400V, 1000V : ±(1% ± 1 digit); max input : DC 1000V

VAC : 4V, 40V, 400V  : ±(1% ± 3 digits), 750V : ±(2% ± 3 digits); Frequency : 40Hz - 400Hz;

max input : AC 400V  (virtual value)

Current

DC : 40mA, 400mA :  ±(1.5% ± 1 digit), 20A : ±(3% ± 3 digits)

AC : 40mA : ±(1.5% ±  3 digits), 400mA : ±(2% ± 1 digit), 20A : ±(5% ± 3 digits)

Impedance

400Ω : ±(1% ± 3  digits), 40ΚΩ - 4ΜΩ : ±(1% ± 1 digit), 40MΩ : ±(1.5% ± 3 digits)

Capacitance

51.2nF~100uF : ±(3% ±  3 digit)

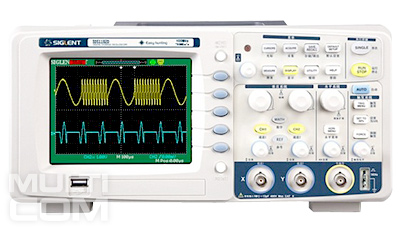

 SDS1022M

 Features:
Bandwidth: 25MHz
Channels: 2CH+1EXT
Real time sampling rate: 500MSa/s
Equivalent sampling rate: 10GSa/s
Memory depth: 4kpts/CH
Rise time: < 14ns
Input impedance: 1MΩ, 17pF
Time base range: 25ns/div-50s/div
Scan: 100ms-50s/div
Vertical sensitivity: 2mV-5V/div
Vertical resolution: 8bit
Trigger source: CH1, CH2, Ext, Ext/5, AC Line
Trigger types: Edge, Pulse, Video, Slope, Alternative
Math Operation: +, -, ×, ÷, FFT
Digital filter: High pass, Low pass, Band pass, Band Stop
Max input voltage: ±400V (DC+AC Pk-Pk), CAT 1, CATII
Internal storage: 2 groups of reference waveform, 20 groups of setting, 10 groups of waveform
External storage: Bitmap save, CSV save, Waveform save, Setting save
Language: English, French, German, Russian, Spanish, Simplified Chinese, Traditional Chinese, Portuguese, Japanese, Korean, Italian, Arabic
Interface: USB Host, USB Device, RS-232, Pass/Fail out
Display: 5.7 inches color TFT-LCD
Power: AC 100-240V, 45Hz-440Hz, 50VA Max

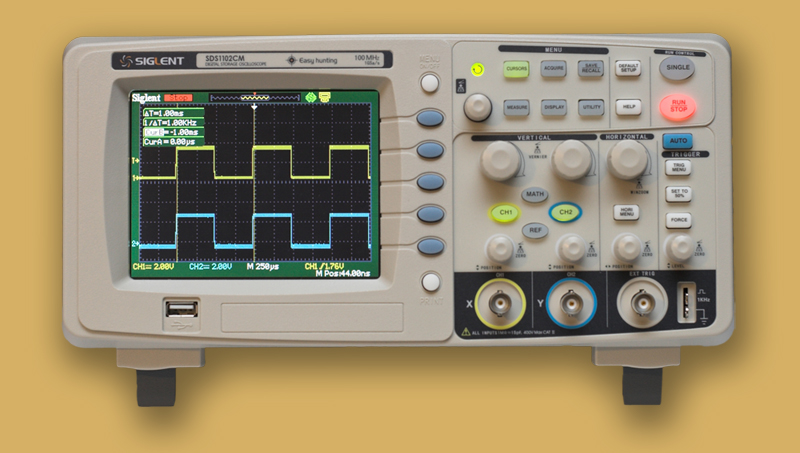

 SDS1102CM 1G

 Siglent 100MHz Storage Oscilloscope

Bandwidth 100MHZ
Channel 2 channels+1 ext trig
Real Time Sampling 1GSa/s
Equivalent Sampling Rate 50GSa/s
Memory Depth 2Mpts
Rise time <3.5ns
Input Impedance 1 Ω ||17pF
Sec/div Range 2.5ns/div-50s/div
Vertical Sensitivity 2mv-10v/div in 1-2-5 sequence
Vertical Resolution 8 bit
Display Color TFT(320*234)5.7" LCD

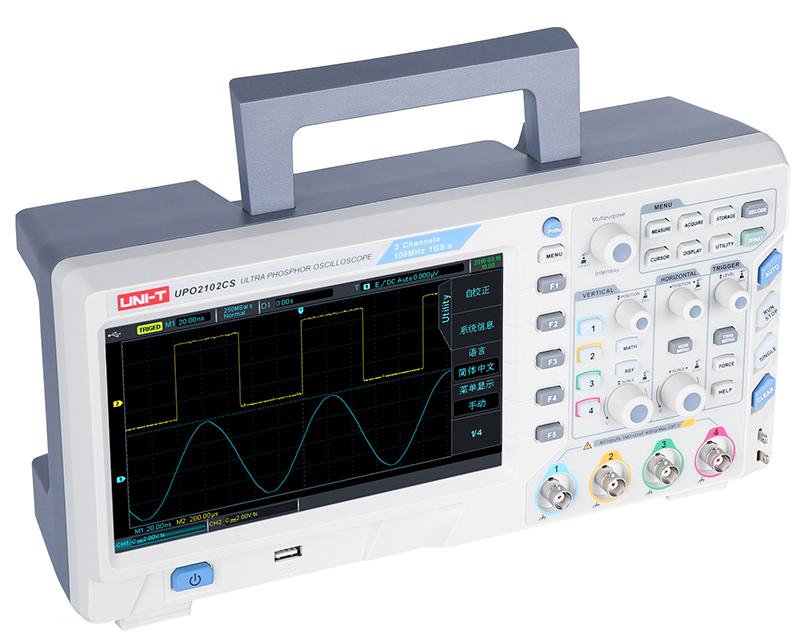

 UPO2102CS Ultra Phosphor Oscilloscope
UNI-T's UPO2102CS digital oscilloscope is a 2 channel 100MHz bandwidth high performance device. It has a sampling rate of 1GS/s.

Features and Benefits:
1、Sample Rate up to 1GS/s；
2、Channels 2/4；
3、Bandwidth 100MHz，

4、Memory Depth 32Mpts(Standard)；
5、Waveform Capture Rate up to 30,000wfms/s；
6、With 256 level intensity grading display；
7、Up to 65,000 frames for Waveform Record ,Replay；
8、Support serial bus trigger and decoding；
9、8 inches, TFT LCD，WVGA(800*480)；
10、Interface：USB Host, USB Device, LAN, VGA, AUX OUT, 10MHz input/output.

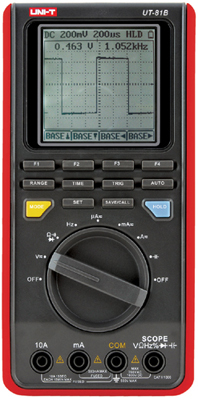

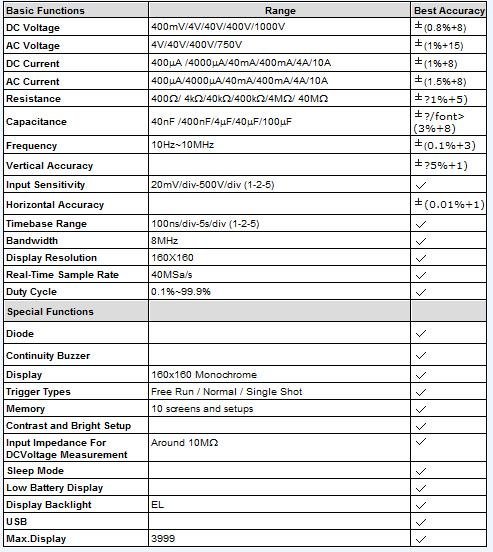

 UT81B   8MHz

 Scope Digital Multimeters, Display 160x160 Monochrome

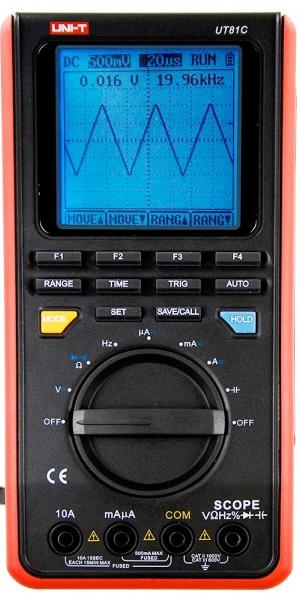

 UT81C    16MHz

 Scope Digital Multimeters, Display 160x160 Monochrome



Specifications Range Best Accuracy
Model   UT81C
DMM Specifications
DC Voltage (V) 400mV/4V/40V/400V/1000V ±(0.8%+8)
AC Voltage (V) 4V/40V/400V/750V ±(1%+15)
DC Current (A) 400μA/4000μA/40mA/400mA/4A/10A ±(1%+8)
AC Current (A) 400μA/4000μA/40mA/400mA/4A/10A ±(1.5%+8)
Resistance (Ω) 400Ω/4KΩ/40KΩ/400KΩ/4MΩ/40MΩ ±(1%+5)
Capacitance (F) 40nF/400nF/4μF/40μF/100μF ±(3%+8)
Frequency (Hz) 10Hz ~ 10MHz ±(0.1%+3)
Scope Specification Range Best Accuracy
Bandwidth   16MHz
Real-Time Sample Rate Constant sampling rate (peak sampling) 80MS/s
Vertical Accuracy   ±(5%+1)
Input Sensitivity 20mV/div - 500V/div(1-2-5)  √
Horizontal Accuracy   ±(0.1%+1)
Time-Base Range 100ns/div - 5s/div(1-2-5) √
Features
Display Count   3999
Auto Range   √
Duty Cycle 0.1 ~ 99.9%  √
Diode   √
Auto Power Off Can set their own √
Continuity Buzzer   √
Display 160 x 160 Monochrome √
Trigger Types Free Run/Normal/Single Shot √
Memory 10 screens and setups √
Contrast and Bright Setup   √
Low Battery Indication   √
USB Interface   √
LCD Backlight   √
Input Impedance for DCV ≥10MΩ √
General Characteristic
Power 1.5V Batteries(R6)X 4  (not included in package)
LCD Size 60mm X 60 mm
Product Color Red and Grey
Product Net Weight 498g
Product Size 200mm X 100mm X 48 mm
Optional Accessories* Scope Probe,AC Power Adaptor
Package Included:
UNI-T UT81C Multimeter
Manual
Test Lead
Alligator Clip
USB Interface Cable
PC Software CD

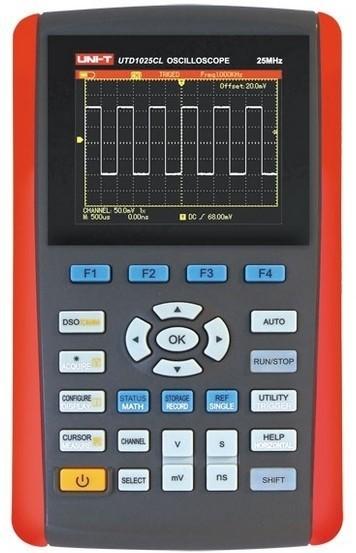

 UTD1025CL 3.5" LCD Handheld Digital Oscilloscope

- Model: UTD1025CL
- Color: Red + Grey
- 3.5" 64K color TFT LCD
- Channel number: 1
- Bandwidth: 25MHz
- Rise Time: 14ns
- Sample Rate: 200MS/s
- Vertical Sensitivity: 5mV/div-20V/div
- Memory Depth: 12kpts
- Scanning Speed: 10ns/div-50s/div
- Trigger Type: Edge,Pulse,Video,Alternate
- Storage: Bitmap,Waveform,Set
- Interface: Mini USB
- Multimeter:
- DC Voltage: 400mV/4V/40V/400V ±(1%+5)
- AC Voltage: 400mV/4V/40V/400V ±(1.2%+5)
- DC Current: 400uA/4000uA ±(1.2%+5), 40mA/4000mA ±(1%+5), 10A ±(1.5%+5)
- AC Current: 400uA/4000uA ±(2%+5), 40mA/4000mA ±(1.5%+5), 10A ±(5%+5)
- Resistance: 400 ohm/4K ohm/40K ohm/400K ohm/4M ohm ±(1.2%+5), 40.00M ohm ±(1.5%+5)
- Capacitance: 51.2nF/512nF/5.12uF/51.2uF/100uF ±(3%+5)
- Built-in rechargeable 7.4V 3600mAh lithium battery
- Working time: not less than 8 hours
- Accessories:
- 1 x 100~240V 50/60HZ 1.5A power adapter (325cm cable)
- 2 x Test Leads (111cm)
- 2 x Sensors (1:1 / 10:1)
- 1 x 10A splitter
- 1 x Carrying pouch
- 1 x USB connecting cable (150cm)
- 1 x Software CD
- 1 x English Manual

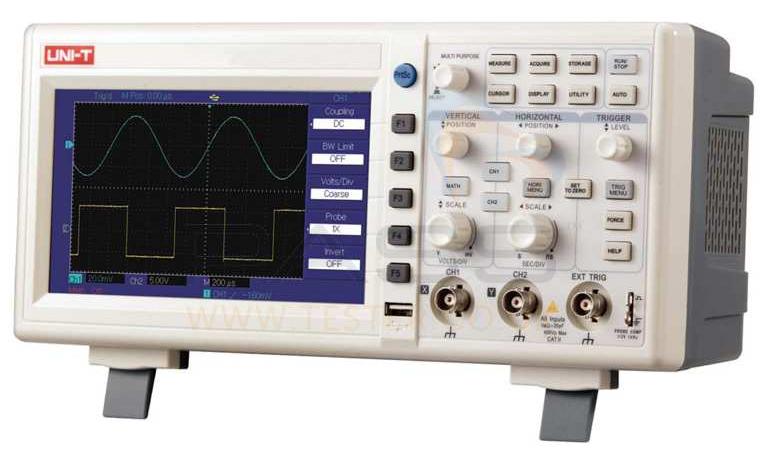

UTD2025CL 25MHz 250Ms/s Digital Storage Oscilloscope DSO 2Channels 7inch TFT LCD

Features:

1.Dual analog channels width range 1mV/div~20V/div.

2.7 inches widescreen LCD displays.

3.Special Print Scree Feature.

4.Supports plug-and-play USB storage device. Communication with and remote control of computer through the USB device.

5.USB drive system software upgrade.

6.Storage of waveforms setups and interfaces waveforms and setups reproduction.

7.Automatic measurement of 28 waveform parameters.

8.Unique waveform recording and replay function.

9.Multilingual menu displays.



Specification UTD2025CL
Channels 2
Bandwidth 25MHz
Sample Rate 250Ms/s
Rise Time ≤14ns
Memory Depth 25kpts
Waveform Acquisition Rate   ≥2000wfms/s
Vertical Sensitivity 1mV/div~20V/div
Timebase Range 10ns/div~50s/div
Storage Setup,Wave,Bitmap
Trigger Modes Edge, Pluse, Video, Alternate
Interface USB OTG,Pass/Fail
General Characteristic
Power 100-240VAC, 40-440Hz
Display 7 Inches 64K Color TFT  LCD,  400×240
Product Color White and Gray
Product Net Weight 2.2 Kg
Product Size (W×H×D) 306mm ×147mm × 122mm
Standard Accessories Probe×2 (1×,10× switchable),Power Cord, USB Cable, PC Software CD
Standard Individual Packing Gift Box, English Manual
Standard Quantity Per Carton 2 PCs
Standard Carton Measurement (L×W×H) 450mm × 420mm × 280mm
Standard Carton Cross Weight 8.5 Kg

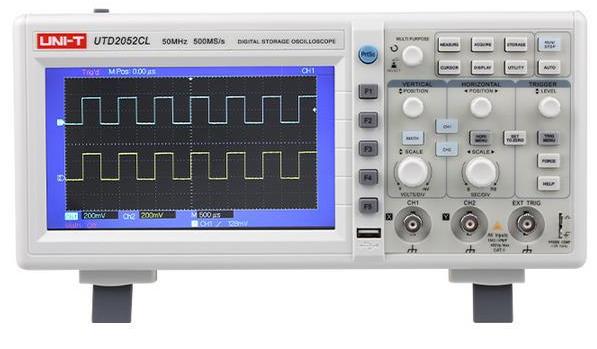

 UTD2052CL 7.0 inch LCD 50MHz Professional Digital Oscilloscope

Features:

1.Dual analog channels width range 1mV/div~20V/div;
2.7 inches widescreen LCD displays;
3.Special Print Scree Feature;
4.Supports plug-and-play USB storage device. Communication with and remote control of computer through the USB device;
5.USB drive system software upgrade;
6.Storage of waveforms setups and interfaces waveforms and setups reproduction;
7.Automatic measurement of 28 waveform parameters;
8.Unique waveform recording and replay function;
9.Multilingual menu displays.

Specifications :

Model: UTD2052CL
Channels: 2
Bandwidth: 50MHz
Sample Rate: 500Ms/s
Rise Time: ≤7ns
Memory Depth: 25kpts
Waveform Acquisition Rate: ≥2000wfms/s
Vertical Sensitivity: 1mV/div~20V/div
Timebase Range: 5ns/div~50s/div
Storage: Setup,Wave,Bitmap
Trigger Modes: Edge, Pluse, Alternate
Interface: USB OTG

General Characteristic:

Product Net Weight: 2.2 Kg
Product Size: 306mm x 147mm x 122mm
Display: 7 Inches 64K Color TFT LCD, 400×240
Product Color: White and Gray
Package Size: 39.5 * 24 * 21cm / 15.5 * 9.5 * 8.2in
Package Weight: 3551g / 7.8lb

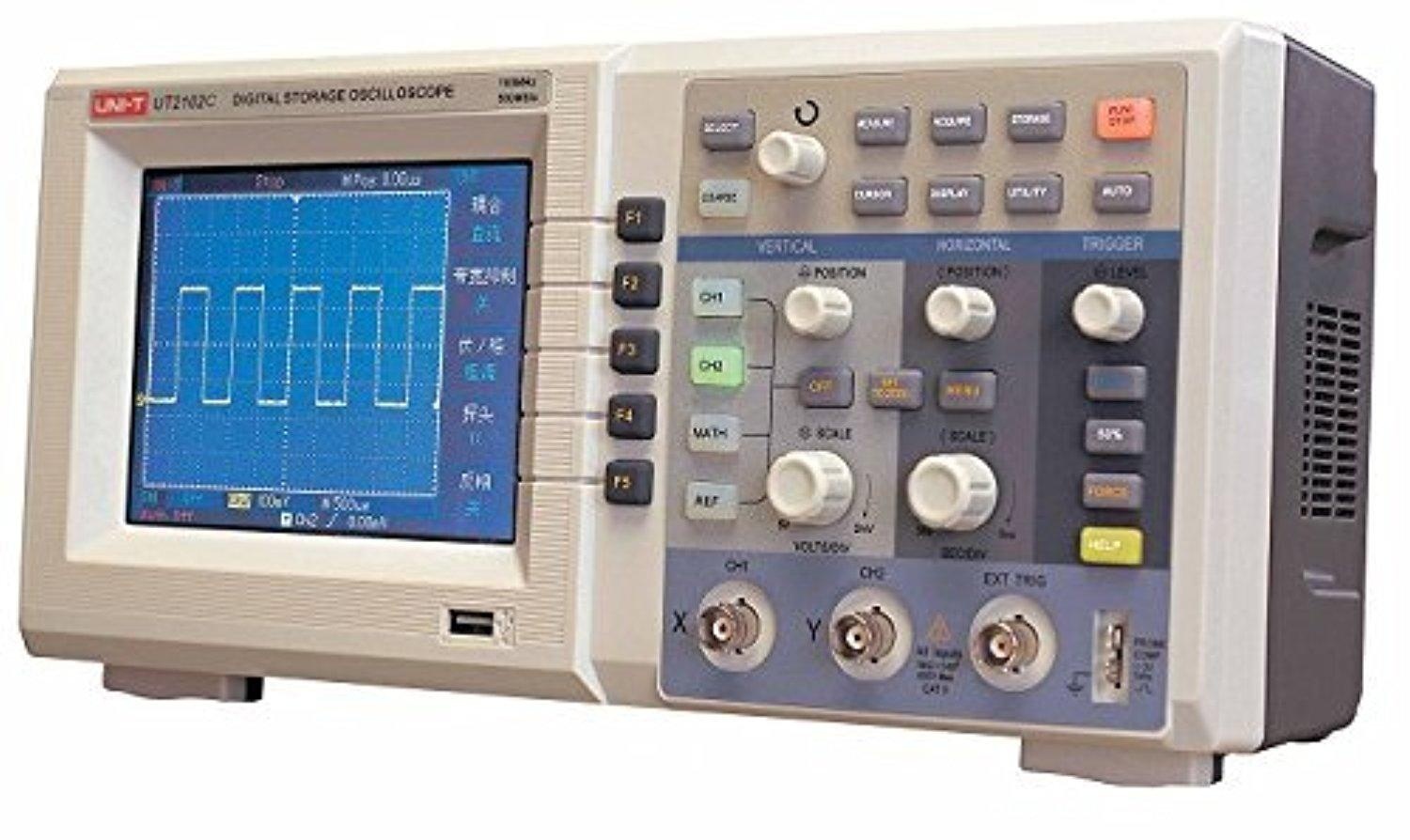

 UTD2102CE

 Digital Storage Oscilloscope

1. Supports PNP USB storage device, can connect with computer and remotely controlled through USB

2. Waveform, setup and bitmap storage as well as waveform and setup recall

3. Automatically measures parameters of 28 kinds of waveforms

4. Unique waveform record and replay function

5. Edge, pulse, video, alternate trigger functions

6. Unique quality inspection function

7. Multilingual menu

Specifications

UTD2102CE

Channels

2

Bandwidth

100MHz

Sampling Rate

1GS/s

Rise Time

≤3.5ns

Memory Depth

25kpts

Waveform Acquisition Rate

≥2000wfms/s

Waveform Acquisition Rate (V/div)

2mV/div~5V/div

Timebase Range (s/div)

5ns/div~50s/div

Storage

Setup, Wave, Bitmap

Trigger Modes

Edge, Pulse, Video, Alternate

Interface

USB Device, USB Host, Pass/Fail

General Characteristics

Power

100-240VAC, 45-440Hz

Display

5.7-inch TFT LCD , QGVA (320×240)

Product Color

White and gray

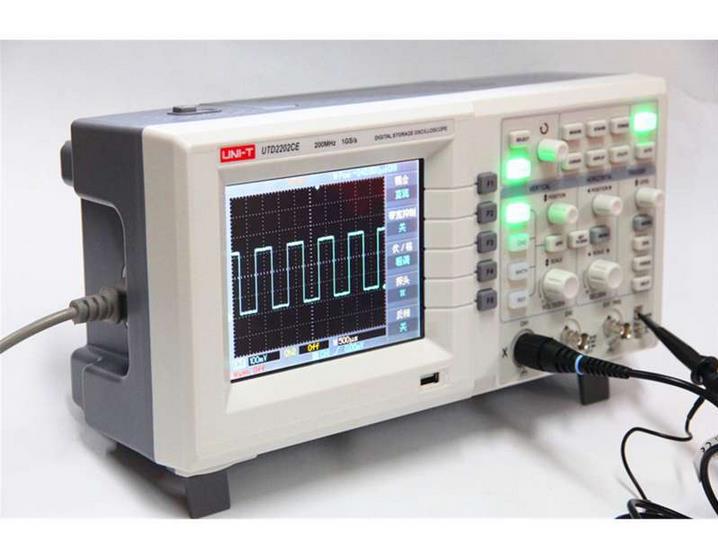

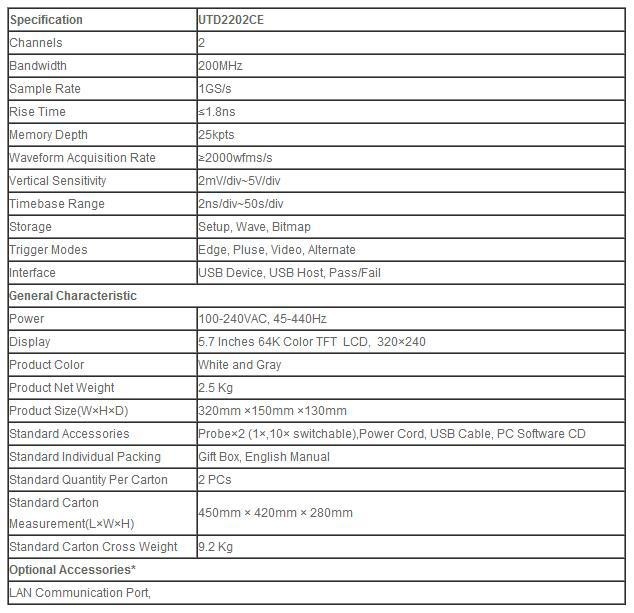

UTD2202CE

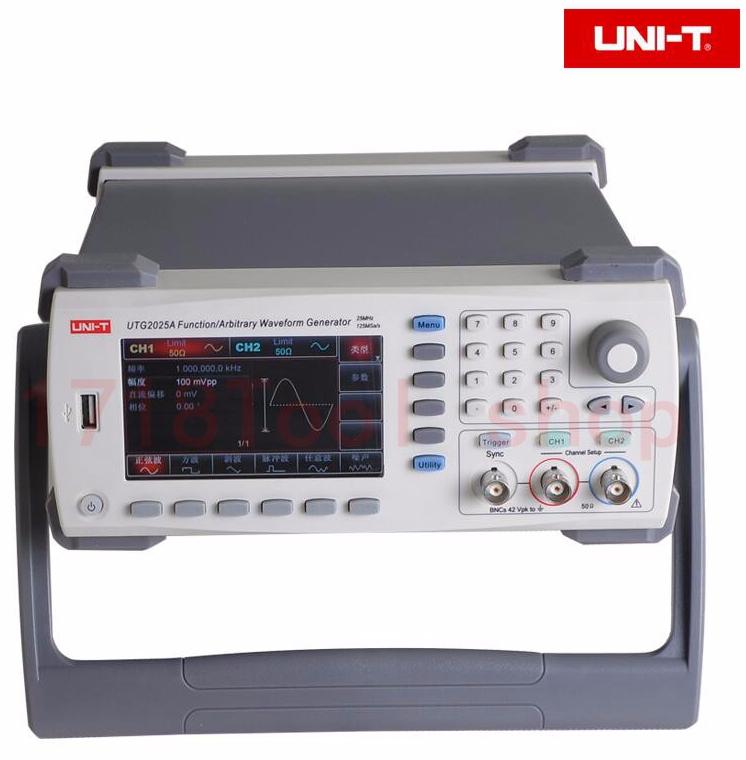

  UTG2025A 25MHz USB Dual Channels Signal Function Arbitrary Waveform           Generator 200MSa/s 4.3'' TFTLCD Arb. Memory Depth 1M

SPECIFICATION
Channels 2
Sample Rate 125MS/s
Output Frequency 25MHz
Frequency Resolution 1uHz
Vertical Resolution 14 bits
Max. Arb. Memory Depth 8 kpts
Waveforms Sine, Square, Ramp, Triangle, Pulse, Noise, DC, Arb
Output Amplitude Range 1mVpp~10Vpp(50Ω), 2mVpp~20Vpp(High Z)
Modulation Types AM, FM, PM, ASK, FSK, PWM, Sweep, Burst
Interfaces USB Device, USB Host, Frequency Meter

GENERAL CHARACTERISTICS
Power 100~240 VAC, 45-440Hz
Display 4.3 inches 64K Colour TFT LCD (480x272)
Product Weight 3.2kg
Product Size 165x320x110mm
Standart Accessories BNC Cable, Power Cord, USB Cable, PC Software CD

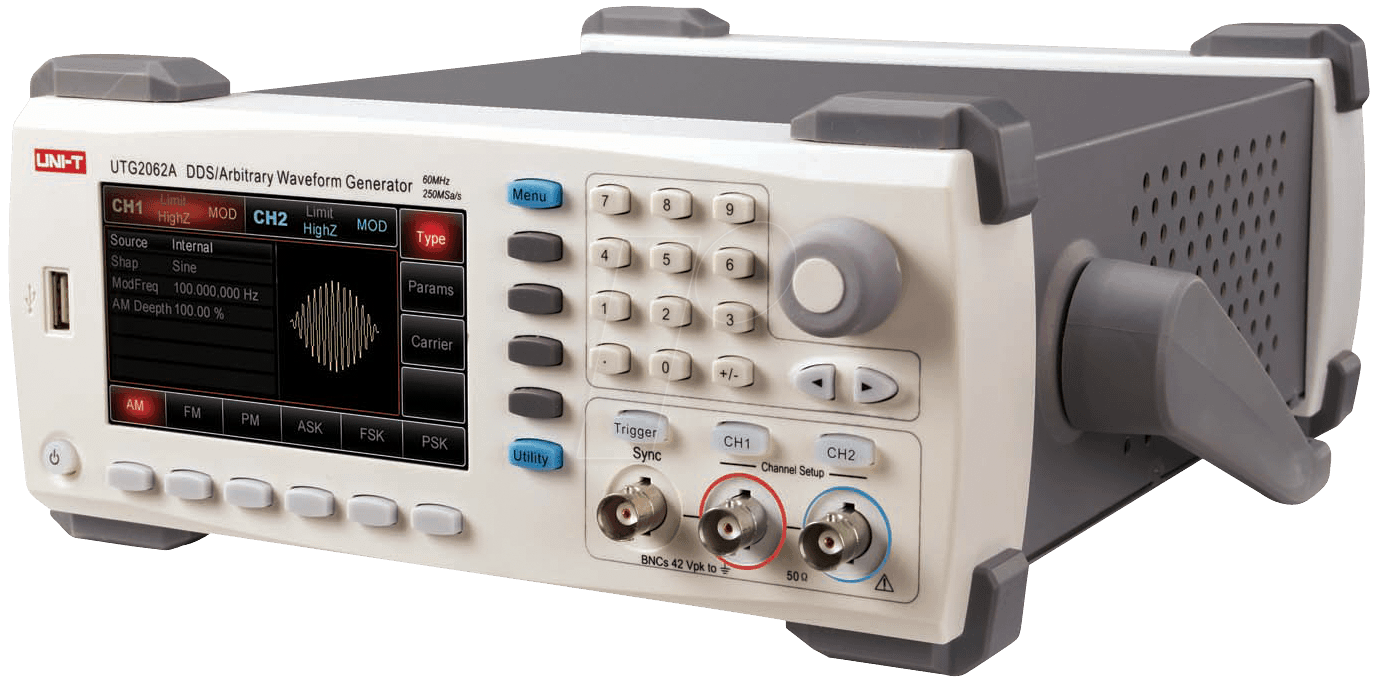

UTG2062A DDS/Arbitrary Waveform Generator

The UNI-T UTG2062A is a high quality waveform generation tool with dual channel measurements, sample rate of 250ms/s and various other advanced features.

Designed as a bench-top unit, the UNI-T UTG2062A features a large, full-colour screen, labelled buttons and dual ports for measuring 2 channels simultaneously. It is capable of generating multiple waveform types, including square, sine, ramp, triangle, pulse, noise, DC and arb. It uses output frequency of 60Mhz, frequency resolution of 1μHz and has vertical resolution of 14 bits. The UTG2062A also features multiple modulation types which are AM, FM, PM, ASK, FSK, PWM, Sweep and Burst.

Also built into the UTG2062A is a USB interface, allowing this device to be connected up to a PC or other similar device via the included USB cable. A software CD is also included with the package in order to interact with the data from this waveform generator.

This product is EN 61010-1 and CAT III 300V compliant.

 Features

  • Generates multiple waveform types including sine, square, ramp, triangle, pulse, noise, DC and Arb
  • Dual channel device
  • Sample rate of 250MS/s
  • Output frequency of 60MHz
  • Frequency resolution of 1μHz
  • Vertical resolution of 14 bits
  • Max arb memory depth 1Mpts
  • Output amplitude range 1mVpp-10Vpp (50Ω); 2mVpp-20Vpp (1MΩ)
  • Multiple modulation types: AM, FM, PM, ASK, FSK, PWM, Sweep and Burst
  • USB device, USB host and LAN interfaces
  • 4.3 inch 64K colour TFT LCD screen
  • UNI-T UTG2062A DDS/Arbitrary Waveform Generator
  • BNC Cable
  • Power Cord
  • USB Cable
  • PC Software CD


Technical Specifications

Channels 2
Sample Rate 250ms/s
Output Frequency 60MHz
Frequency Resolution 1μHz
Vertical Resolution 14bits
Max. Arb Memory Depth 1Mpts
Waveforms Sine, Square, Ramp, Triangle, Pulse, Noise, DC and Arb
Output Amplitude Range 1mVpp-10Vpp(50Ω); 2mVpp-20vpp (1MΩ)
Modulation Types AM, FM, PM, ASK, FSK, PWM, Sweep and Burst
Interfaces USB Device, USB Host and LAN
Power 100-240VAC, 40-440Hz
Display 4.3" 64K Colour TFT LCD (480 x 272)
Product Net Weight 3.2kg
Product Size 231mm x 94mm x 283mm


 Probes ãÌÓÇÊ

ãÌÓÇÊ ÑÇÓã ÅÔÇÑÉ
