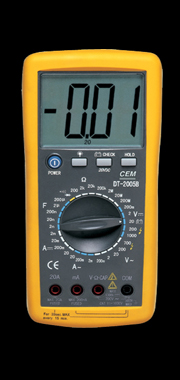

DT-2005B
３1/2
Digital Multimeters
|
DT-2005B offer high accuracy and all the
measurement functions you need. They have
double molded plastic housing and oversized
high contrast 2000 counts LCD display with
backlight. Large LCD display
Safety Conformance
All inputs are protected to EN61010-1,
CATIII 600V, CATII-1000V
|
Features |
|
Digital display counts |
2000 |
|
Double molded plastic housing |
* |
|
Data Hold |
* |
|
Full overload protection on all
ranges |
* |
|
Backlit LCD Display |
* |
|
BAT symbolic signs |
* |
|
|
Specifications |
|
Function |
Max Range |
Basic
Accuracy |
|
Voltage DC |
1000V |
±(0.5%+2d) |
|
Voltage AC |
700V |
±(1.0%+3d) |
|
Current DC |
20A |
±(1.5%+3d) |
|
Current AC |
20A |
±(2.0%+3d) |
|
Resistance |
20MΩ |
±(1.2%+2d) |
|
Capacitance |
200uF |
±(4.0%+3d) |
|
Diode Check |
Open
Voltage 2.8V dc |
|
Continuity Test |
Threshold
30Ω |
Size(HxWxD):
195mm x 92mm x
38mm
Weight: 380g
Accessories:
Test leads and 9V battery.
|
|
|
|
