ANENG 613 Smart Multimeter

اضغط هنا لتحصل على معلومات مفصلة

Specification:
Function Range
AC current 0mA-10A
DC current 0mA-10A
AC voltage 0mV-600V
DC voltage 0V-600V
Capacitor 0nF-40mF
Resistance 0Ω-40MΩ
Hz         40Hz-4MHz
Diode √
Buzzer √
Automatic
shutdown		 15 No operation
automatic shutdown
Maximum count 4000 Counts
Material ABS
Battery model No. 7 AAA battery* 2




ANENG AN9205A Digital Multimeter LCD 1999 Count Manual Range Universal Meter AC DC Resistance Capacitance Transistor Tester

Specifications:
Material: ABS
Color: Red / Blue / Yellow / Green (Optional)
Power Supply: 9V 6F22 Battery (NOT included)
Technical Parameters:
DC Voltage: 200mV-2V-20V-200V-1000V (±3%)
AC Voltage: 200mV-2V-20V-200V-750V (±3%)
DC Current: 20mA-200mA-20A (±3%)
AC Current: 2m-20m-200m-20A (±3%)
Resistance Measurement Ω: 200-2k-20k-200k-2M-

20MΩ-200MΩ (±3%)
Capacitance Measurement F: 20nF-200nF-2uF-

200uF (±3%)
Continuity Check (buzzer): √ (forward pressure drop)
Diode Measurement: √
Triode Measurement: √
Fire Wire Identification: √
Overload conservation: √
Low Voltage Symbol Display: √
Automatic Shutdown Function: √

(without operation for 15 minutes)
Item Size: Approx. 182.5*90*35.4mm / 7.19*3.54*1.39in
Item Weight: Approx. 178g / 6.28oz





ANENG Q1 Digital Multimeter 9999 Analog

Tester True RMS Professional Multimetro

DIY Transistor Capacitor NCV Testers LCR Meter







Specifications:

Brand Name

ANENG

Model Number

Q1

Display (LCD)

9999 Counts

Ranging

Auto/Manual

Material

ABS+TPE

Update Rate

3 Times/Second

Ture RMS

YES

Data Hold

YES

Relative Value

Measurement

YES

Low Battery Indication

YES

Backlight

YES

Auto Power Off

YES

Operating

Tenperature

0~40°C





Hunidity

75%



Storage

Tenperature

-20~60°C





Hunidity

80%


Funtion Range
DC voltage (V) 999.9mV/9.999V/99.99V/999.9V
DC voltage (mV) 9.999mV /99.99mV
AC voltage (V) 999.9mV/9.999V/99.99V/750.0V
AC voltage (mV) 9.999mV /99.99mV
DC Current (mA&A) 999.9mA/9.999A
DC Current (uA) 9999uA
AC Current (mA&A) 999.9mA/9.999A
AC Current(uA) 9999uA
Resistance 99.99
Resistance 999.9 /9.999k /99.99k /999.9k /
Resistance 9.999M
Resistance 99.99M
Capacitor 9.999nF
Capacitor 99.99nF /999.9nF /9.999F /99.99F /999.9F
Capacitor 9.999mF
Frequency 99.99Hz /999.9Hz /9.999kHz /99.99kHz /999.9kHz /2.000MHz
Duty cycle 1%~99%
Diode   :YES Continuity   :YES
Temperature (-20~1000)° /(-4~1832)°
Power 2 * 1.5V AA batteries
Sample Rate 3 times per second

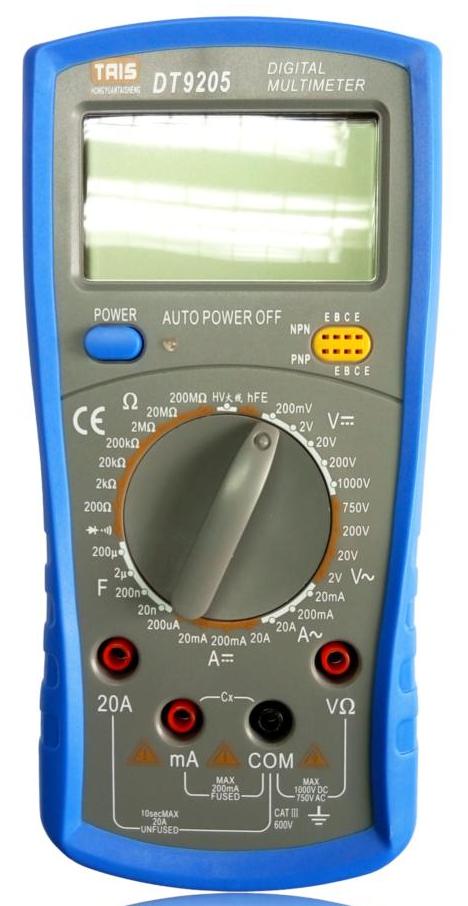

DT9205



Technical Parameters:
 AC Voltage  2/20/200±(0.8%+5) /750V±(1.2%+10)
DC Voltage  200mV/2/20/200V ±(0.5%+3)/1000V±(0.8%+3)
DC Current 200μA±(0.8%+10)/2mA/20mA/200mA/20A ±(2.0%+5)
AC Current 20mA/200mA/20A ±(2.0%+5)
Resistance  200/2k/20k/200k/2M 20M/200M Ω±(1.0%+15)
Capacitance     20nF/200nF/2uF/200uF±(2.5%+20)
 Max Display : 1999
 Input Impedance : 10MΩ
 Sample Rate :  3times/S
 LCD Backlight :YES
 Diode:YES
 Audion: YES
 Continuity Buzzer: YES
 Dimensions: 17.30 x 9.30 x 5.50cm

Color: White grey, Grayish yellow

Weight :400 g (9V battery x 1)
 Accessories: Multimeter x 1,manual x 1, text pen

x1shock proof jacket x 1, outer packing box x 1

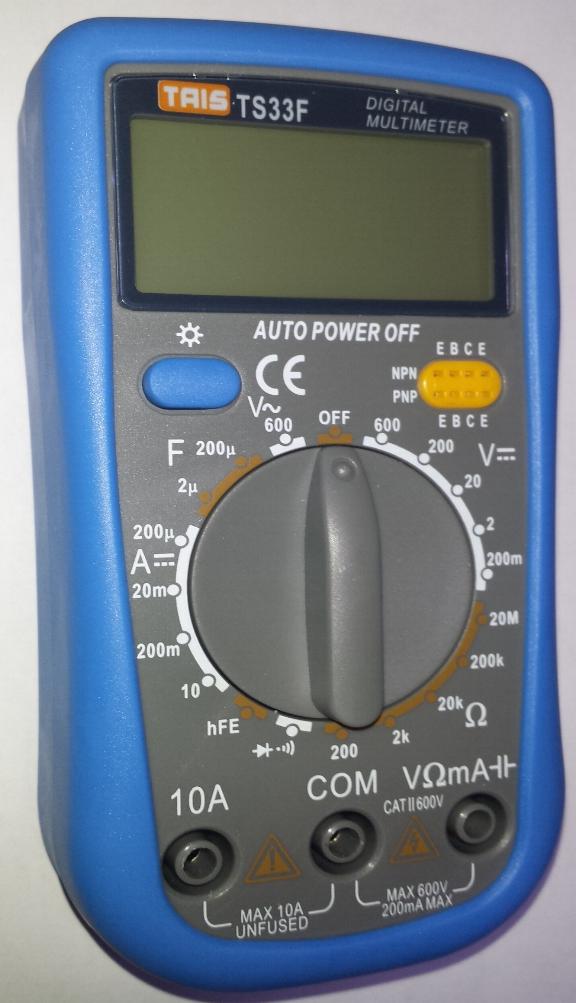

TS33F

Model:TS33F

Display:1999 counts

Color: Gray+Blue

Material:Plastic

AC Voltage:200V/600V?(1.5%+10)

DC Voltage:200mV/2V/20V/200V?(0.5%+3),600V?

DC Current:200uA/2mA/20mA?(1%+3),200mA?(1.2%+3),

Resistance:200?/2K?/20K?/200K??(0.8%+5),20M?

Capacitance:2uF/200uF?(3%+2)

Backlight:Yes

Diode Test:Yes

hFE Test:Yes

Continuity Testing:Yes

Auto power off:Yes

Power: 9V Battery 6F22 (not included)

Product Net Weight:150g

Product Size:138mm * 70mm * 32mm



TS890D

Technical Parameters:
 AC Voltage  2/20/200±(0.8%+5) /750V±(1.2%+10)
DC Voltage  200mV/2/20/200V ±(0.5%+3)/1000V±(0.8%+3)
DC Current 200μA±(0.8%+10)/2mA/20mA/200mA/20A ±(2.0%+5)
AC Current 20mA/200mA/20A ±(2.0%+5)
Resistance  200/2k/20k/200k/2M 20M/200M Ω±(1.0%+15)
Capacitance     20nF/200nF/2uF/200uF±(2.5%+20)
 Max Display : 1999
 Input Impedance : 10MΩ
 Sample Rate :  3times/S
 LCD Backlight :YES
 Diode:YES
 Audion: YES
 Continuity Buzzer: YES
 Dimensions: 17.30 x 9.30 x 5.50cm

Color: White grey, Grayish yellow

Weight :400 g (9V battery x 1)
 Accessories: Multimeter x 1,manual x 1, text pen x1shock proof jacket x 1, outer packing box x 1

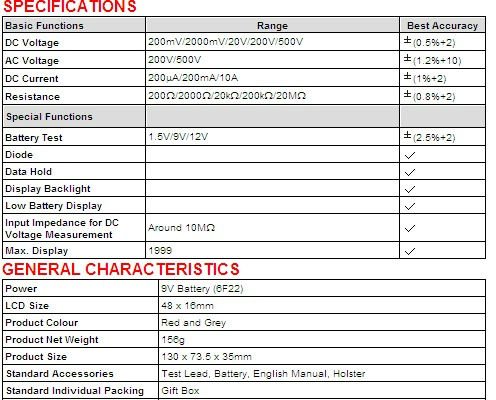

UT33B

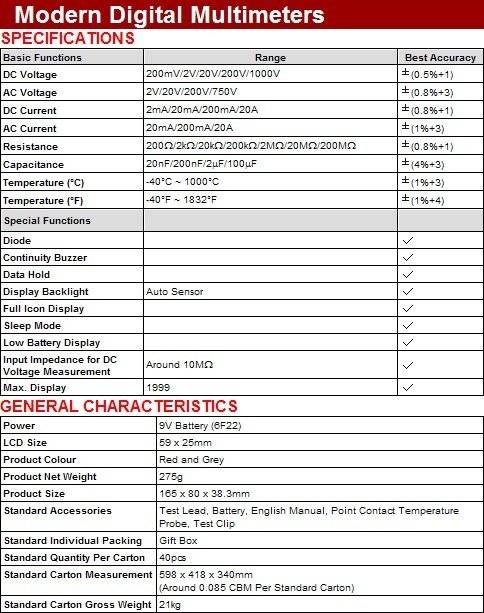

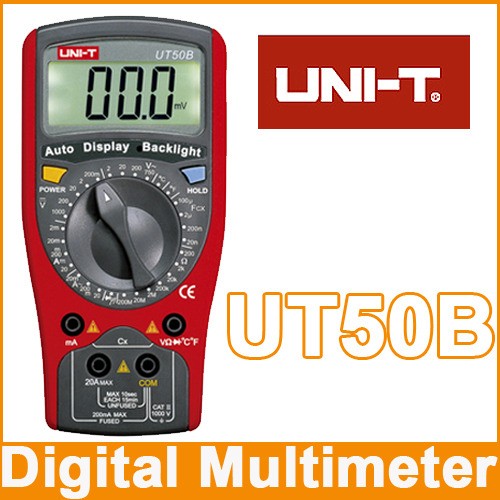

UT50B

UT58C

Specification
Basic Functions
DC Voltage 200 mV - 1000 V
AC Voltage 2 V - 750 V
DC Current 20 µA - 20 A
AC Current 20 mA - 20 A
Resistance 200 Ω - 200 MΩ
Capacitance 2 nF - 100 µF
Frequency 2 kHz - 20 kHz
Frequency Response N/A
Duty Cycle N/A
Special Functions
Audible Continuity Yes
Diode Yes
Data Hold Yes
Display Backlight Yes
Sleep Mode No
Max Display 1999
General
Battery Type 1 x 9V battery
Dimensions 88 mm x 39 mm x 179 mm
Weight 380 g

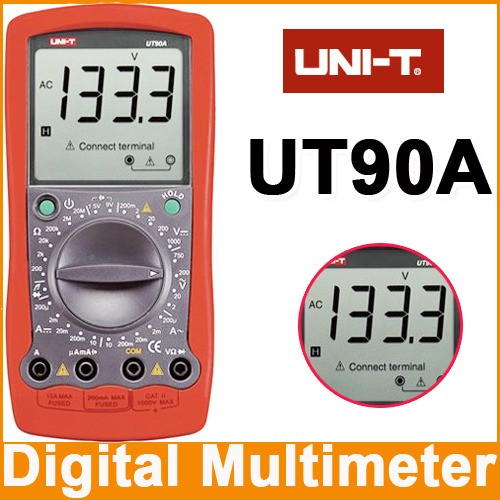

UT90A

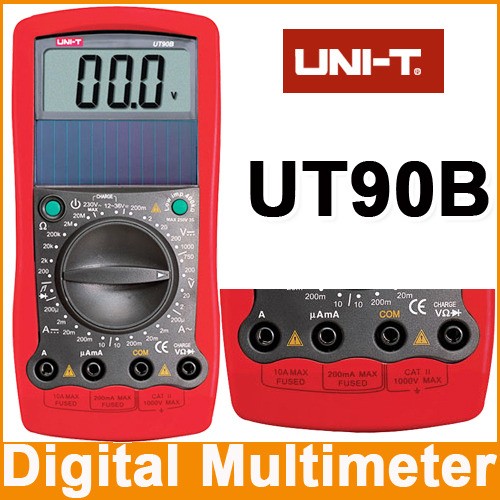

UT90B

UT205A

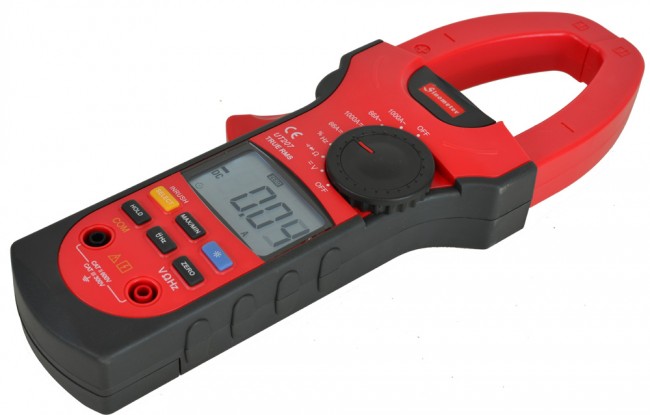

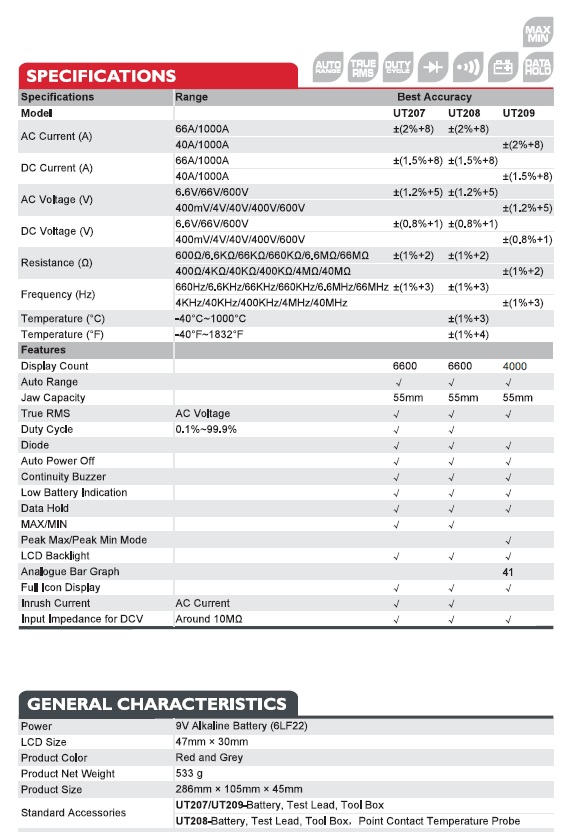

UT207

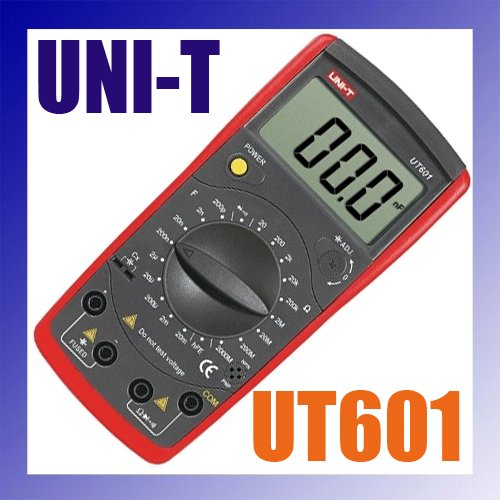

UT601

Specifications Range
Model UT601

Resistance (Ω) 20Ω/200Ω/2KΩ/20KΩ/200KΩ/2MΩ/20MΩ/

200MΩ/2000MΩ
Capacitance (C) 200pF/2nF/20nF/200nF/2uF/20uF/200uF

/2mF/20mF
Features
Display Count 　
Manual Range 　
Diode 　
Transistor 　
Continuity Buzzer 　
Low Battery Indication 　
General Characteristic
Power 9V Battery（6F22)
LCD Size 61mm X 32 mm
Product Color Red and Grey
Product Net Weight 310g
Product Size 172mm X 83mm X38 mm
Standard Accessories Battery, Test Clip,Holster

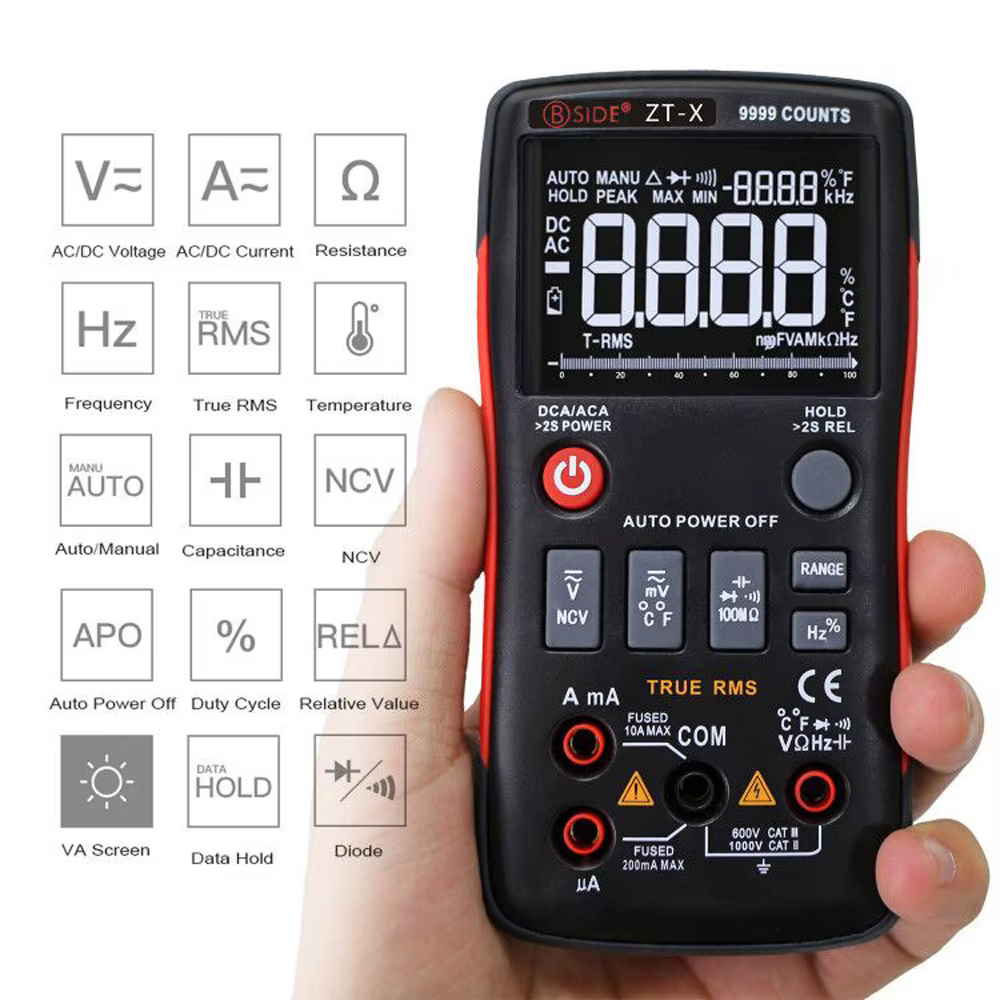

ZT-X True RMS Digital Multimeter 3-Line

Triple Display 9999 Counts AC/DC Voltage

Temperature Capacitance Tester

Specifications:

DC voltage: 999.9mV/9.999V/99.99V/999.9V±(0.5%+3),9.999mV/99.99mV±(0.5%+3)

AC voltage: 999.9mV/9.999V/99.99V/750V±(1.0%+3),9.999mV/99.99mV±(1.0%+3)

DC current: 999.9mA/9.999A±(1.0%+3),99.99mA/

9999μA±(0.8%+3)

AC current: 999.9mA/9.999A±(1.2%+3),

99.99mA/9999μA±(1.0%+3)

Resistance: 99.99Ω±(1.0%+3),999.9Ω/

9.999kΩ/99.99kΩ/999.9kΩ±(0.5%+3),

9.999MΩ±(1.5%+3),99.99MΩ±(3.0%+5)

Capacitance:9.999nF±(5.0%+20),

99.99nF/999.9nF/9.999μF/99.99μF/999.9μF±

(2.0%+5),9.999mF±(5.0%+5)

Frequency:99.99Hz/999.9Hz/9.999kHz/

99.99kHz/999.9kHz/5.000MHz ±(0.1% + 2)

Duty Cycle:1%~99%±( 0.1%+2)

Temperature:-20°~1000°(-4°~1832°)±(2.5%+5)

Supply power:2 x 1.5V AA battery (not included)

Product Size:146 x 72 x 33mm

Probes مجسات

مجسات راسم إشارة



ANENG 620A Digital Smart Multimeter Transistor Testers 6000 Counts True RMS Auto Electrical Capacitance Meter Temp Resistance

Specification:

Function Range
AC Current 6000mA/10A
DC Current 6000mA/10A
DC Voltage 6V/60V/600V
AC Voltage 6V/60V/600V
Line on-off Test --
Resistance 600Ω/6kΩ/60kΩ/600kΩ/6MΩ/60MΩ
Diode Test --
Capacitor 6nF
  60nF/6uF/60uF/600uF/6mF/60mF
Temperature -40~1000℃
  -40~1832℉
Frequency 100Hz/1000Hz
  100Hz/1000Hz

ANENG 621A Digital Multimeter 9999 Counts Auto Range Rechargeable Portable NCV Universal Meter Voltmeter Ammeter LCD Touch Screen


























Specifications:
AC Current: 999.9mA/10A
DC Current: 999.9mA/10A
AC Voltage: 999.9mV/9.999V/99.99V/999.9V
DC Voltage: 999.9mV/9.999V/99.99V/999.9V
Resistance: 999.9Ω/9.999KΩ/99.99KΩ/999.9KΩ/

9.999MΩ/99.99MΩ
Capacitance: 9.999nF/999.9nF/9.999uF/99.99uF/999.9uF/9.999mF/99.99mF
Temperature: -40~1000℃(-40~1832℉)
Frequency: 100Hz/1000Hz

Color: Black / Red (Optional)
Material: ABS
Working Altitude: Maximum 2000m
Display: LCD
Maximum Display Value: 9999 digits
Polarity Indication: Automatic indication, "-" indicates negative
Overrange Display: "OL" or "-OL"
Sampling Time: About 3 times/second
Automatic Shutdown Time: 15 minutes
Battery Undervoltage Indicator: Yes
Temperature Coefficient: <0.1X accuracy/℃
Operating Temperature: 0~40°C
Storage Temperature: -10~50℃
Power Supply: Built-in 3.7V 600mAh polymer lithium battery
Item Size: 133 * 66.5 * 22.5mm / 5.24 * 2.62 * 0.89in
Item Weight: 162g / 5.71oz


SP110

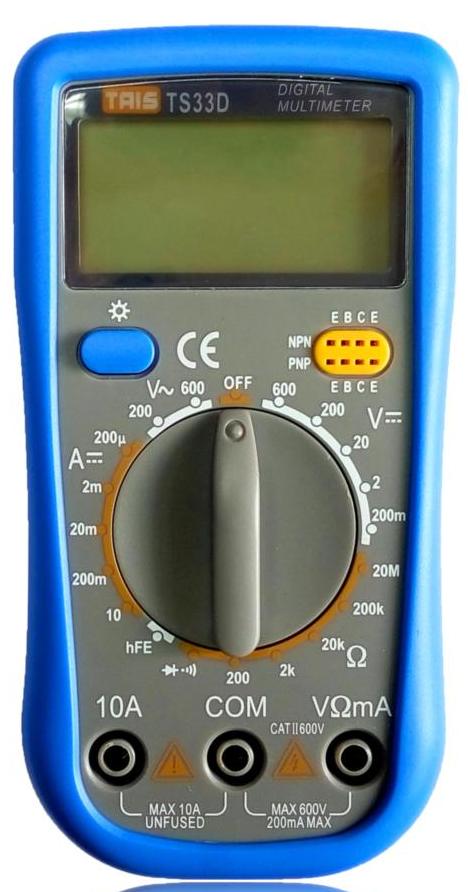

TS33D

Technical Parameters:
 AC Voltage:  200±(0.8%+5) /600V±(1.2%+10)
 DC Voltage : 200mV/2/20/200V ±(0.5%+3)/600V±(0.8%+3)
 DC Current : 200μA±(0.8%+10)/2mA/20mA/200mA/20A ±(2.0%+5)
 Resistance : 200/2k/20k/200k/2M 20MΩ±(1.0%+15)
 Max Display : 1999
 Input Impedance : 10MΩ
 Sample Rate :  3times/S
 LCD Backlight :YES
 Diode:YES
 Audion: YES
 Continuity Buzzer: YES
 Dimensions: 13.80 x 7.00 x 3.30cm
 Color: White grey, Grayish yellow
 Accessories: Multimeter x 1,manual x 1, text pen x1,shock proof jacket x 1,

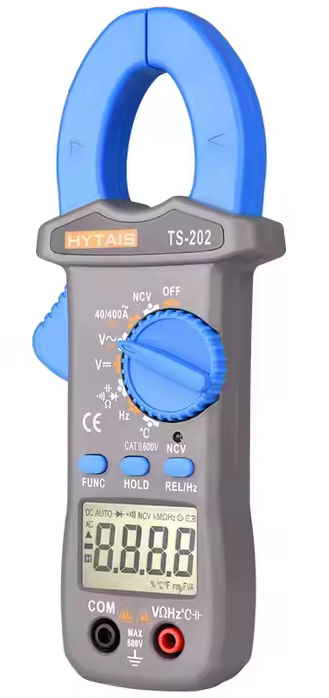

TS202  600A AC Mini Digital Clamp Meter


Measuring Current Range         400A
Measuring Voltage Range         600V
Measuring Resistance Range    40MΩ
Measuring Capacitance Range  200uF

TS203 Ac Dc Current Multifunctional Clamp Meter Multimeter True RMS

Measuring Current Range         400A

Measuring Voltage Range         600V

Measuring Resistance Range     40MΩ

Measuring Capacitance Range    4mF

TS890C+

Technical Parameters:
AC Voltage  2/20/200±(0.8%+5) /750V±(1.2%+10)
DC Voltage  200mV/2/20/200V ±(0.5%+3)/1000V±(0.8%+3)
DC Current 200μA±(0.8%+10)/2mA/20mA/200mA/20A ±(2.0%+5)
AC Current 20mA/200mA/20A ±(2.0%+5)
Resistance  200/2k/20k/200k/2M 20M/200M Ω±(1.0%+15)
Capacitance     20nF/200nF/2uF/200uF±(2.5%+20)
Max Display : 1999
Input Impedance : 10MΩ
Sample Rate :  3times/S
LCD Backlight :YES
Diode:YES
Audion: YES
Continuity Buzzer: YES
Dimensions: 17.30 x 9.30 x 5.50cm

Color: White grey, Grayish yellow

Weight :400 g (9V battery x 1)
Accessories: Multimeter x 1,manual x 1, text pen x

1shock proof jacket x 1, outer packing box x 1

UT30D

DCV:200mV-500V       ±(0.5% + 2)
           CE:500V
ACV:200V-500V        ±(1.2% +10)
           CE:500V
DCA:2000μA-10A       ±(1% + 2)
OHM:200Ω-20MΩ       ±(0.8% + 2)
hFE:yes
Diode Test:yes
Contimuity Buzzer:yes
Square wave o/p:yes
Data Hold for easy reading
Power Supply:9V 6F22
Maximum Display:1999
Product Size:75*130*36mm
Product Net Weight.150g
Packing:Gift box

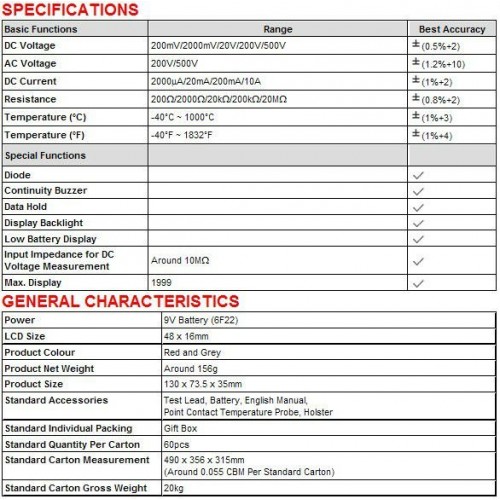

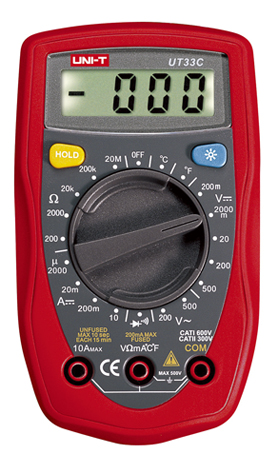

UT33C

UT58B

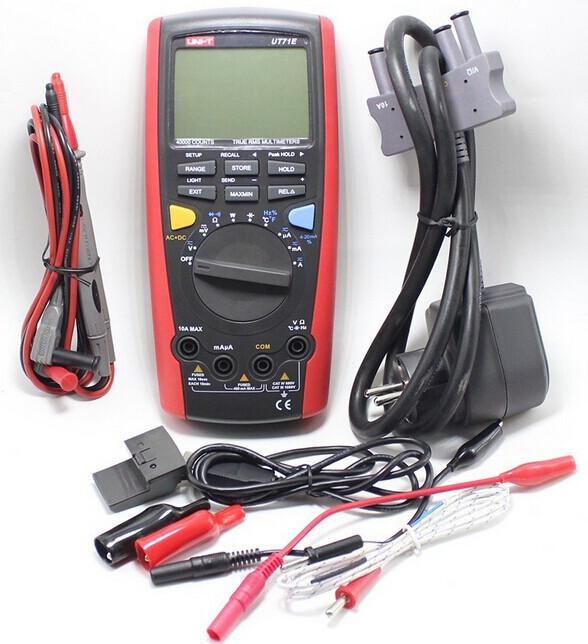

UT71E Digital Multimeter Tester USB

Auto Data Log AC DC Power Cord Socket

Specifications Range
Model
DC Voltage (V) 400mV/4V/40V/400V/1000V
AC Voltage (V) 4V/40V/400V/1000V
DC Current (A) 400μA/4000μA/40mA/400mA/10A
AC Current (A) 400μA/4000μA/40mA/400mA/10A
Resistance (Ω) 400Ω/4KΩ/40KΩ/400KΩ/4MΩ/40MΩ
Capacitance (F) 40nF/400nF/4μF/40μF/400μF/4mF/40mF
Frequency (Hz) 40Hz-400MHz
Temperature (°C) -40 °C ~ 1000°C
Temperature (°F) -40°F~1832°F
Power (W) 2500W
Features
Display Count
Auto Range
True RMS
Bandwidth (Hz) 100KHz
Duty Cycle 10% ~ 90%
Diode
Auto Power Off
Continuity Buzzer
Low Battery Indication
Data Hold
Relative Mode
MAX/MIN
Data Logging
USB Interface
Double Backlight
Analogue Bar Graph
Full Icon Display
Setup
Input Impedance for DCV DC 400mV: Around 2.5GΩ,All Other Range: 10MΩ
4 - 20mA Loop 0~100%
Fused 10 A
Current Measurement Alarm
Voltage & Current  AC+DC Measurement
General Characteristic
Power 9V Battery(6F22)
LCD Size 73mm X 50 mm
Product Color Red and Grey
Product Net Weight 384g
Product Size 200mm X 93mm X 40 mm
Standard Accessories Battery, Test Lead, Alligator Clip, Test Clip, USB Interface Cable,PC Software CD,Carrying Bag, Point Contact Temperature Probe,Power Ada

UT90C

Specifications Range Best Accuracy
Model 　 UT90C
DC Voltage (V) 400mV/4V/40V/400V/1000V ±(0.8%+1)
AC Voltage (V) 4V/40V/400V/750V ±(1%+5)
DC Current (A) 400μA/4000μA/40mA/400mA/4A/10A ±(1%+2)
AC Current (A) 400μA/4000μA/40mA/400mA/4A/10A ±(1.5%+5)
Resistance (Ω) 400Ω/4KΩ/40KΩ/400KΩ/4MΩ/40MΩ ±(1%+2)
Capacitance    (F) 40nF/400nF/4μF/40μF/100μF ±(3%+5)
Frequency (Hz) 10Hz～10MHz ±(0.1%+3)
Features
Display Count 　 3999
Auto Range 　 √
Solar Power 　 √
Diode 　 √
Auto Power Off 　 √
Continuity    Buzzer 　 √
Low Battery    Indication 　 √
Relative Mode 　 √
Data Hold 　 √
Full Icon    Display 　 √
Input    Protection 　 √
Input    Impedance for DCV Around 10MΩ √
Low Impedance    Selection 　 　
General Characteristic
Power UT90C-Charging    at AC 230V or AC/DC12-36V or Solar Power
UT90D-9V Battery（6F22)
LCD Size UT90C-60mm    X 26mm ,UT90D-60mm X    54mm
Product Color Red and Grey
Product Net Weight 340g （Including Holster）
Product Size 179mm X 88mm X 39mm
Standard  Accessories UT90C-Holster，Test Lead,UT90D-Battery,Holster，Test Lead
Standard Individual Packing Gift Box, English Manual

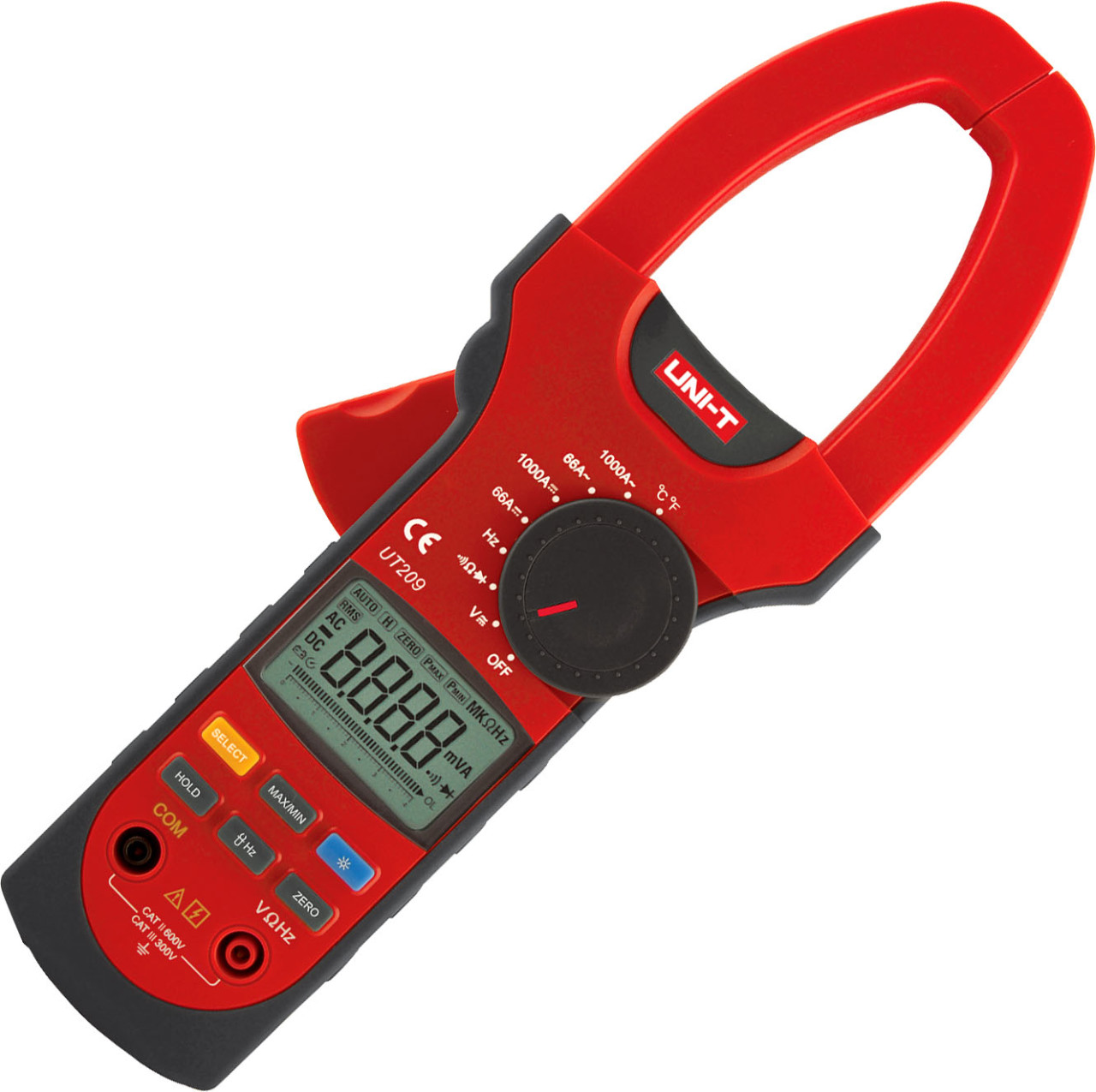

UT209

Specification
Screen Size 2.2inch
Max. Display 3999
DC Voltage 400mV/4V/40V/400V/600V±(0.8%+1)
AC Voltage 400mV/4V/40V/400V/600V±(1.2%+5)
DC Current 40A/1000A±(1.5%+8)
AC Current 40A/1000A±(2%+8)
Resistance 400/4K/40K/400K/4M/40M ±(1%+2)
Frequency Accuracy 4KHz/40KHz/400KHz/4MHz/40MHz±(1%+3)
Transistor Test No
Temperature Test No
Frequency Test Yes
Power Consumption Test No
Short-Circuit Protection No
Short Curcuit Buzz Yes
Auto Power Off Yes
Powered By 9V(6LF22)
Battery Number 1
Battery included or not No
Other Features
Other Features Features: Display Count: 4000 Auto Range; Jaw Capacity: 55mm True RMS; AC Voltage; Diode; Auto Power Off; Continuity Buzzer; Low Battery Indication; Data Hold; Peak Max/Peak Min Mode; LCD Backlight; Analogue Bar Graph: 41; Full Icon Display; Input Impedance for DCV: >/=10Mohm
Certification CE

ZT100

Model Number: ZT100
Material: ABS
Color: Gray&Blue
Sample rate: 3 times per second
Display: 4000 Counts
Over range indication:OL
Ture RMS: No
Auto range: Yes
Date hold: Yes
Backlight: Yes
Auto power off: Yes
Diode test: Yes
Continuity test: Yes
Low voltage indication: Yes
Main measurements: AC/DC Voltage, AC/DCCurrent,

Resistance,Capacitance,
Frequency,Duty Cycle,Diode and Continuity Testing.
DC volts: 400mV/4V/40V±(0.5%+4),400V/1000V±(0.8%+4)
AC volts: 4V/40V/400V±(1.2%+4),750V±(1.5%+4)
DC current: 4A/10A±(1.5%+4),40mA/400mA±(1.5%+4)
AC current: 4A/10A±(2.0%+4),40mA/400mA±(2.0%+4)
Resistance: 400Ω/4KΩ/40KΩ/400KΩ/4MΩ±(0.8%+4),

40MΩ±(2.0%+4)
Capacitance: 4nF±(5.0%+20),40nF±(2.5%+4)
400nF/4μF/40μF±(3.5%+4)
Frequency: 99.99Hz/999.9Hz/9.999kHz/99.99kHz/999.9kHz/

9.999MHz±(0.1% +2)
Duty Cycle: 1%~99%±(0.1% +2)
Working environment: 0~40C, relative humidity <; 75%
Supply power:1.5V AAA battery * 2 Pcs (not included)
Product Weight:127g
Product Size:125mm * 65mm * 24 mm
Package Size:16 * 9.7 * 4.5cm / 6.3 * 3.8 * 1.8in

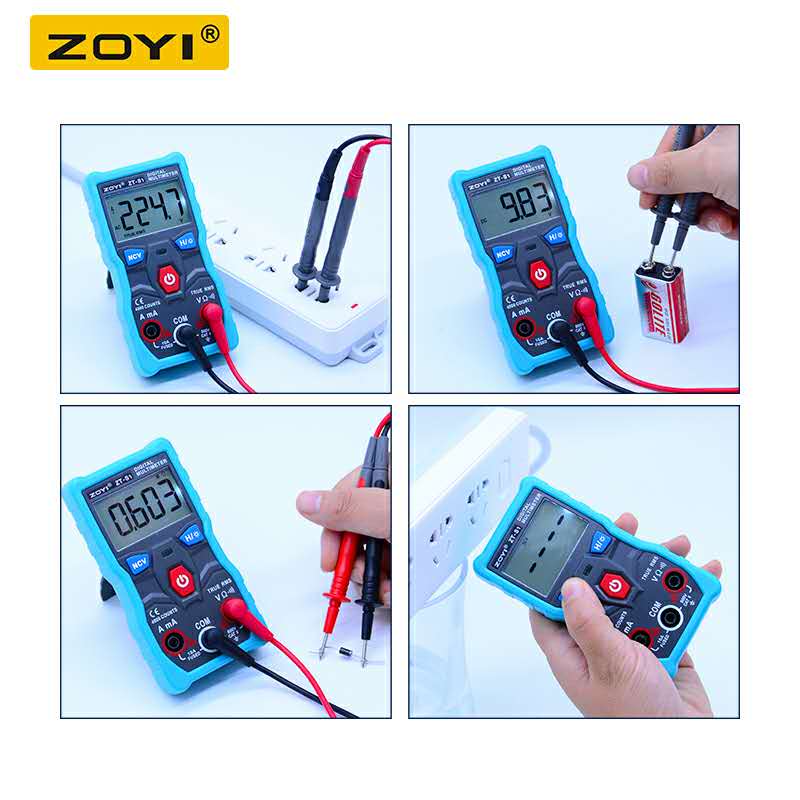

 ZT-S1 /  S3







Model Number: ZT-S1
Measuring Resistance Range: 4k/40k/400K/4M/40M Ohm
Operating Mode: Auto range
AC Voltage: 4V/40V/400V/600V
DC Voltage: 4V/40V/400V/600V
AC Current: 999.9mA/9.99A
DC Current: 999.9mA/9.99A
Item: Digital automotriz multimeter tester
LCD display: 4000 Counts
Ture RMS: YES
Data hold: YES
Backlight: YES
Aotu power off: YES
Flishlight: YES
Upate rate: 3/s
NCV measurement: YES
Continuous measurement: YES
Color: blue
Material: EVA, Nylon
Outside Size: 152*85*45mm/6x3.4x1.8 inch
Product Size: 150*78*42mm/5.9x3.1x1.6 inch
Net weight: 60g



General Specifications:



  ZT-S1 ZT-S2 ZT-S3 ZT-S4
Display Counts 4000 4000 4000 4000
Ture RMS / NCV √ √ √ √
Ranging Auto Auto Auto Auto
Material ABS ABS ABS ABS
Backlight √ √ √ √
Update Rate 3/s 3/s 3/s 3/s
Flashlight √ √ √ √
Low Battery Indication √ √ √ √
Auto Power Off √ √ √ √
Zero Line/Fire Line Judgment √ √ √ √
Continuity √ √ √ √
Temperature × × × √
Frequence × × √ √
Capacitance × × √ √
Resistance √ √ √ √
Battery Test × 1.5V/9V/12V × ×



Electrical Specifications:



ZT-S1~S4
Function Range
DC Voltage 4.000V/40.00V/400.0V
600V
AC Voltage 4.000V/40.00V/400.0V
600V
AC mA 999.9mA
AC A 9.999A
DC mA 999.9mA
DC A 9.999A
Resistance 4.000kΩ
40.00kΩ/400.0kΩ/4.000MΩ
40.00MΩ
ZT-S3/S4 Only
Capacitance 4.000nF
40.00nF/400.0nF/4.000μF  /40.00μF/400.0μF
4.000mF
Frequence 4.000Hz/40.00Hz/400.0Hz/4.000KHz/40.00KHz/400.0KHz /4.000MHz/10.00MHz
Temperature  -20°-1000°/-4°-1832°(ZT-S4 Only )
Continuity
NCV
Frequency response at AC modes
