راسم إشارة Oscilloscope

ملاحظة : يمكننا استيراد أجهزة فحص وقياس حسب طلب الزبون

ولمعرفة معلومات مفصلة عن كل جهاز .. اكتب في غوغل رقم موديل الجهاز

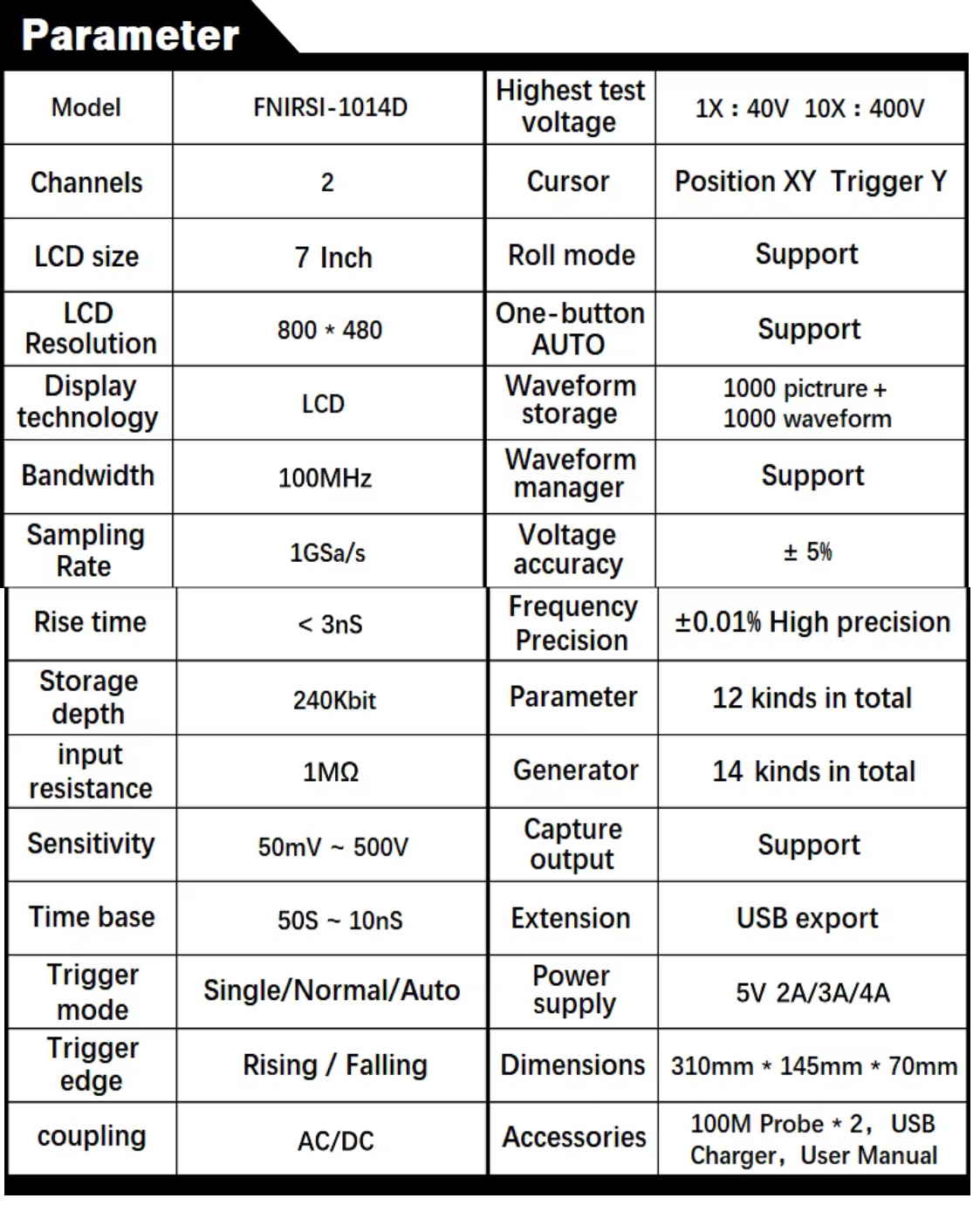

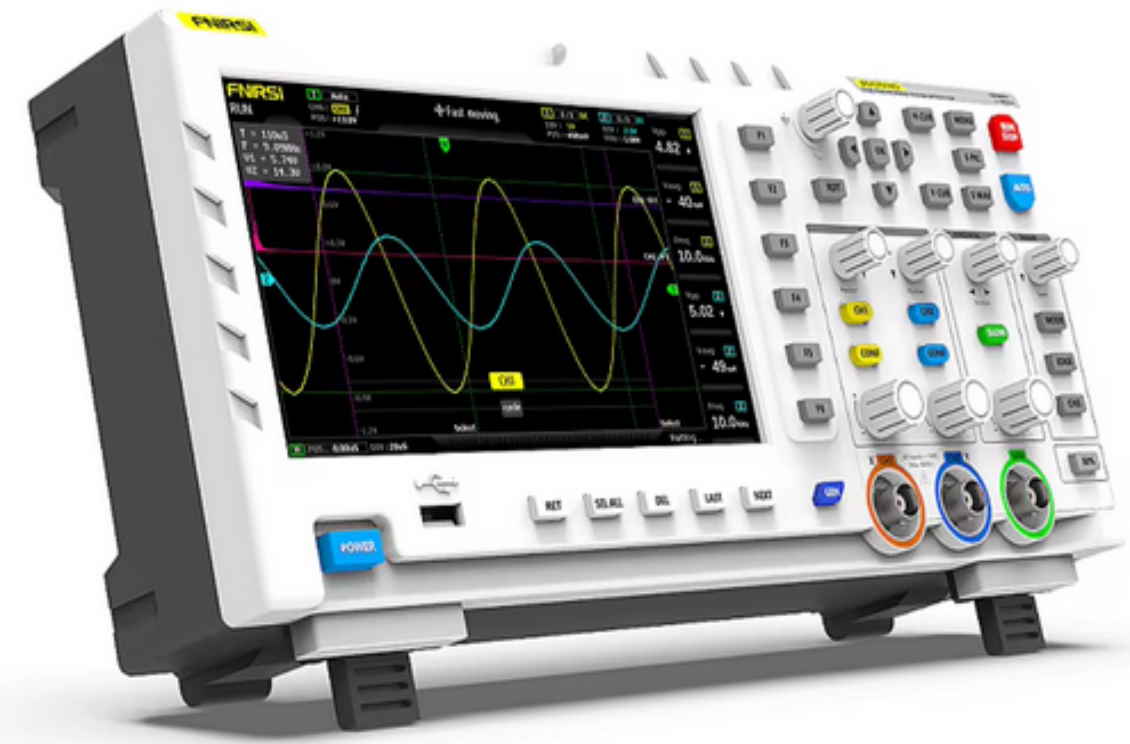

 FNIRSI-1014D

راسم إشارة قناتين 100 ميغاهرتز + مولد إشارة

فيديو توضيحي : https://www.youtube.com/watch?v=5gjUf3682b4

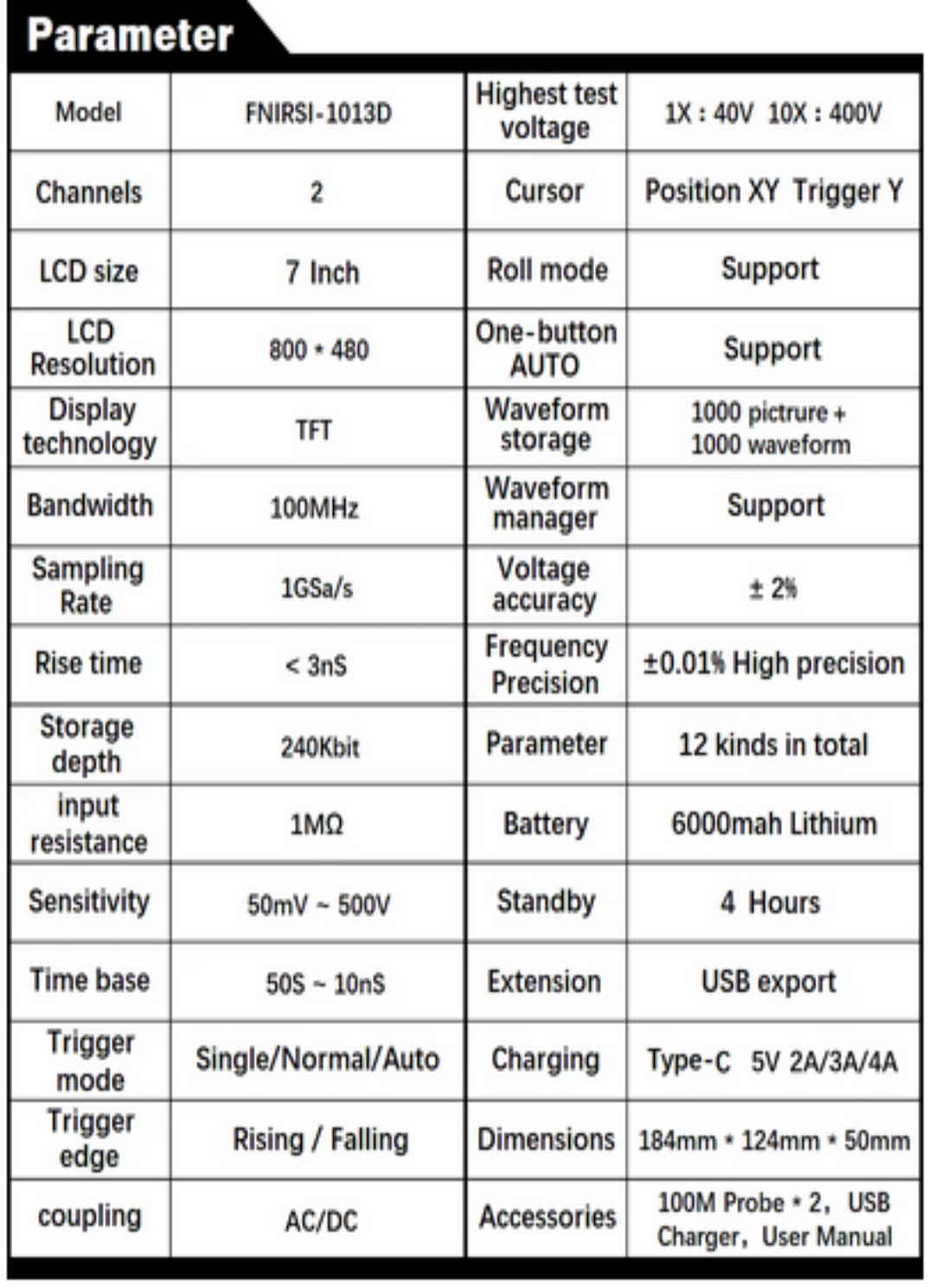

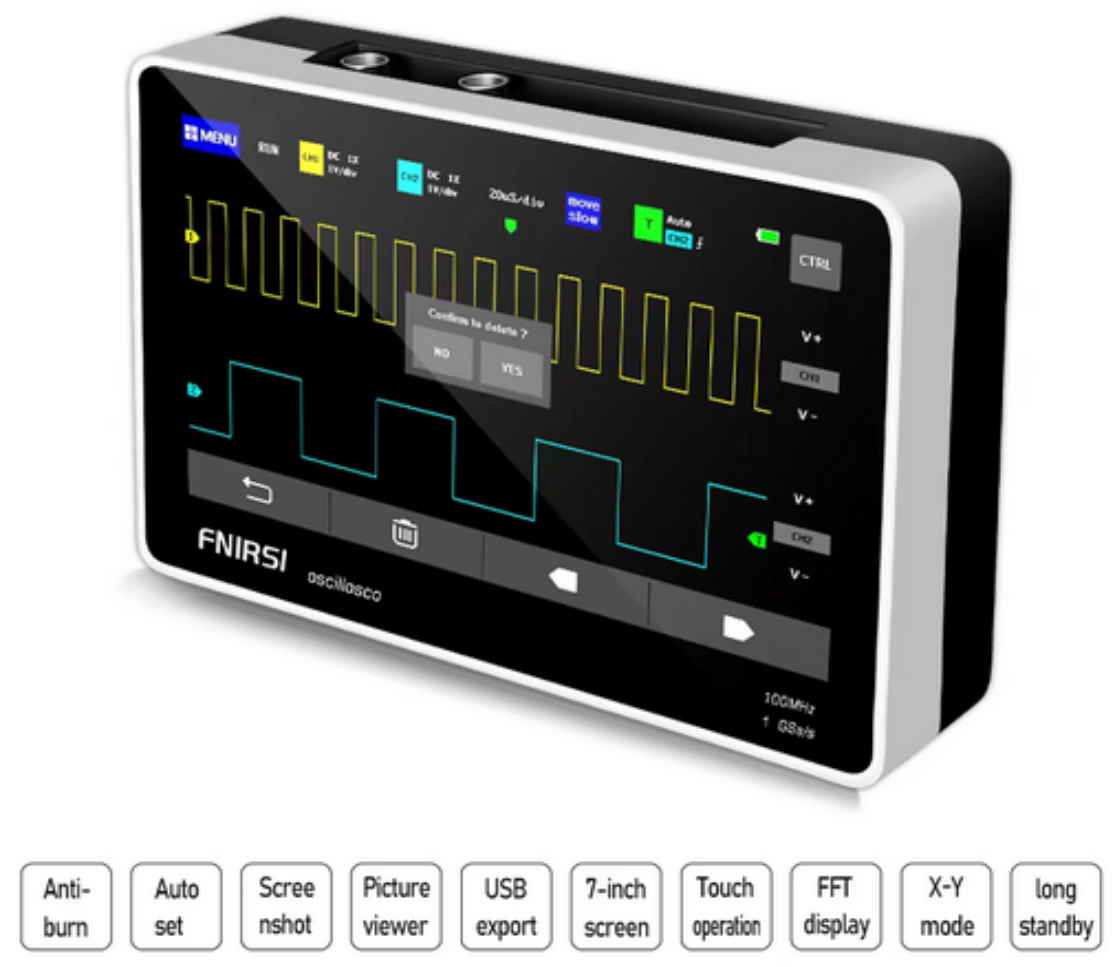

   راسم إشارة قناتين 100 ميغاهرتز بحجم التابلت   FNIRSI-1013D

  فيديو توضيحي : https://www.youtube.com/watch?v=fieC4Org1E8

 راسم إشارة قناتين + مولد إشارة

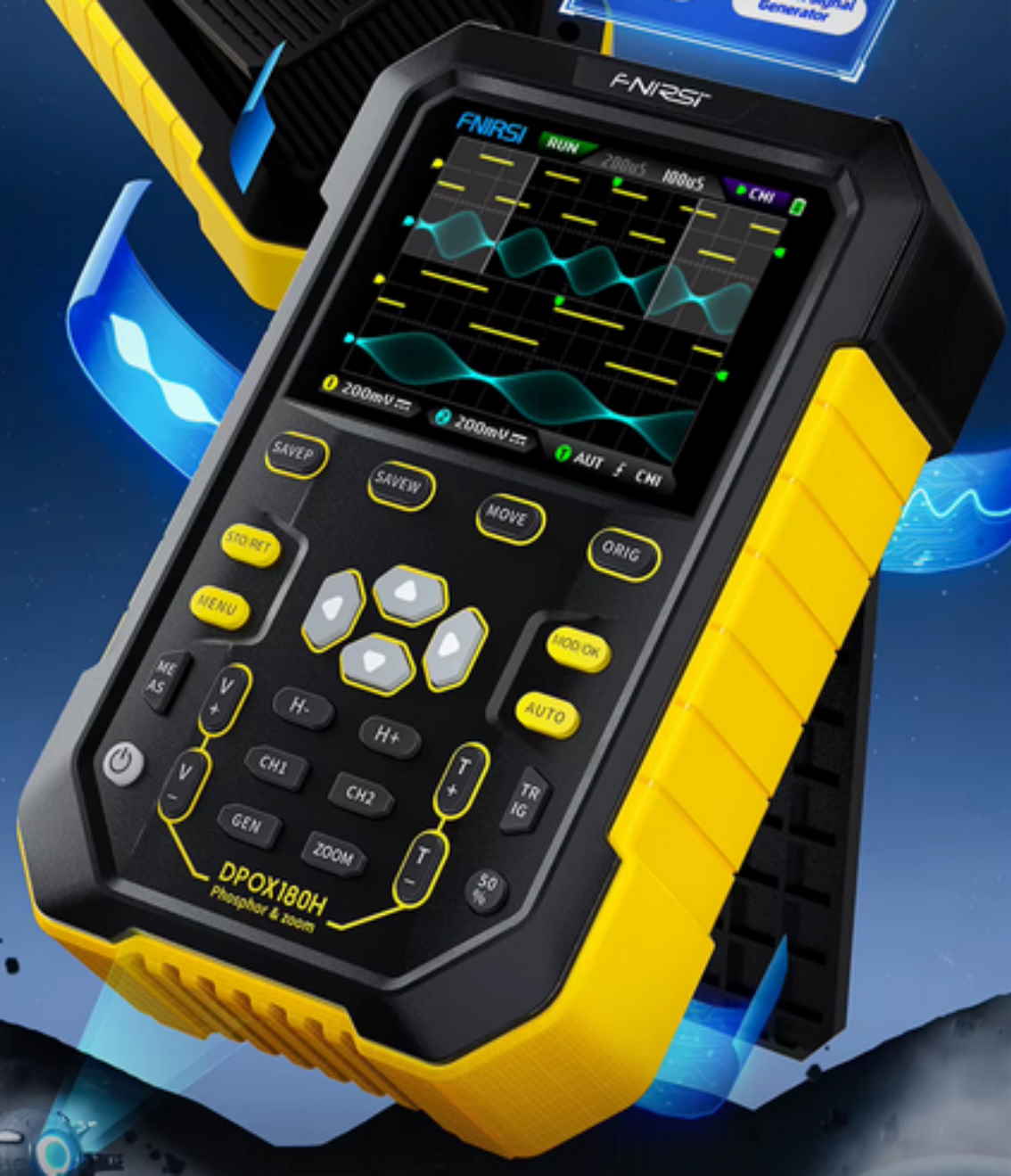

FNIRSI DPOX180H Dual Channel Handheld Digital Oscilloscope 180MHz-3DB 2 In 1 Function Signal Generator Fluorescence Display ZOOM

Specification

Number of channels:2
Analog bandwidth:180MHZ
Maximum sampling rate:500MSPS
Input coupling:DC/AC
Rise time:2.5nS
Storage depth:120Kpts
Input impedance:1MΩ-18PF
Vertical sensitivity:5mV ~ 10V(1X)
Time base range:5nS ~ 50S
DC accuracy:±2%
Time accuracy:±0.01%
Measurement range:40mV ~ 80V(1X)
Digital phosphor technology:support
Color temperature display:support
Zoom scaling time base:support
20M hardware bandwidth limitation:support
Adjustable automatic bandwidth limitation:support
X-Y mode:support
FFT:support
Cursor measurement:Frequency/Period/Amplitude
Trigger detection:Digital trigger
Trigger mode:Auto/Single/Normal
Trigger edge:Rising/Falling
Roll mode:support
Screenshot storage:90
Waveform storage:250 groups
Capture signal:500
Parameter measurement:12 kinds
Signal generator:14 standard function signals
Auto-adjustment support
Waveform manager:support
Waveform output:support
High-voltageburnout protection:support
Screen size 2.8:inches
Screen resolution:320x240
Display technology:IPS full view
Expansion interface:USB transmission interface
Auto power-off:5minutes-2hours
Firmware upgrade:support
Charging requirements:5V 2A
Battery capacity:3000mAh
Standby time:3.5 hours at full charge
Dimensions:135mmx90mmx40mm


فيديو توضيحي : https://www.youtube.com/watch?v=rRq8h7ICEhk

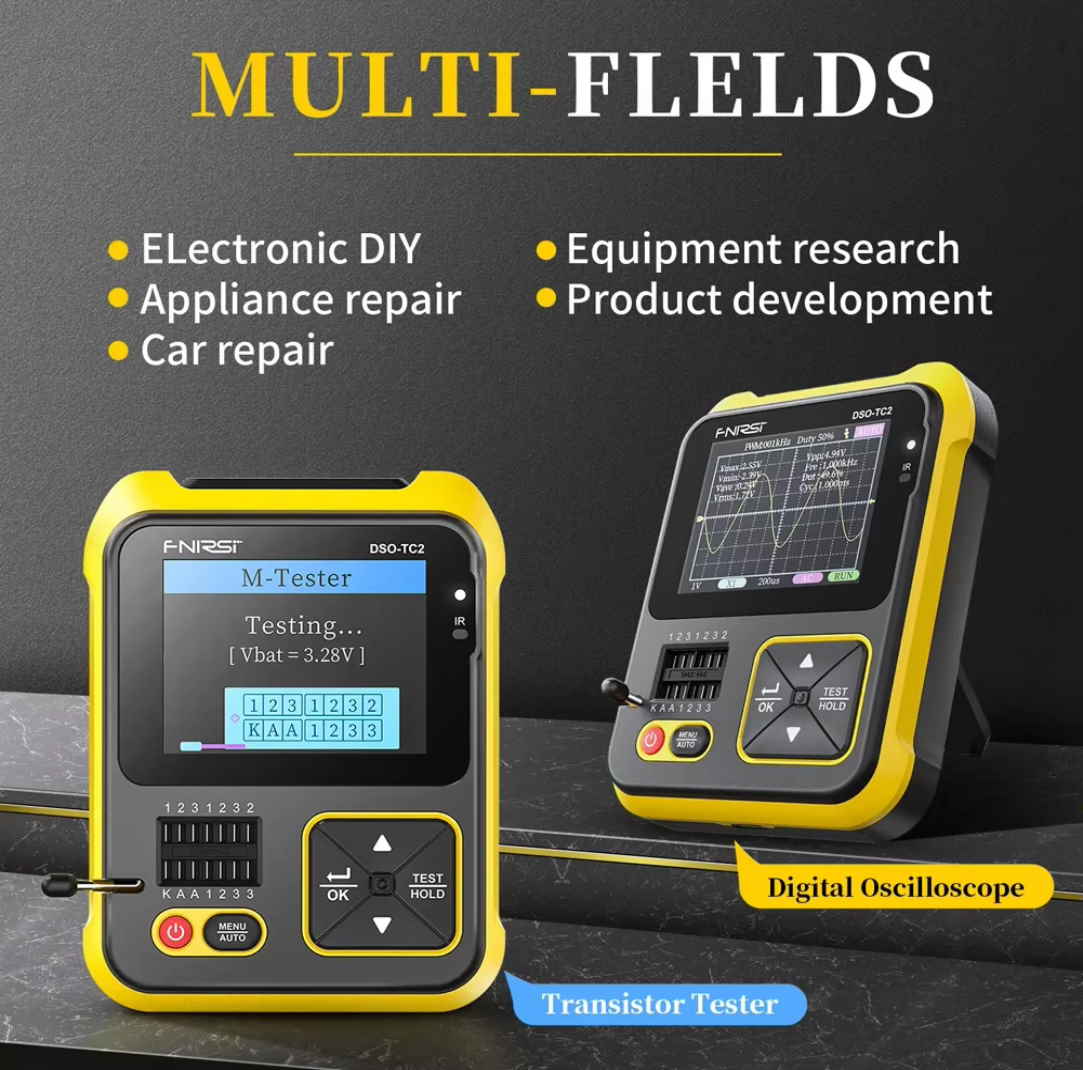

راسم إشارة + فاحص قطع الكترونية

FNIRSI DSO-TC2 200kHz Bandwidth Oscilloscope Transistor Tester Digital Oscilloscope 2 In 1 Testing Tool

Specifications:
Material: ABS
Type: without adapter, with adapter (optional)
Display: 2.4inch color screen with backlight
Battery: 1 * lithium battery, 1500mAh (included)
Recharging: USB Type-C, 5V
Package size: 140 * 125 * 55mm / 5.5 * 4.9 * 2.2in
Package weight:
Without adapter: 296.6g / 10.5ounce
With adapter: 345.6g / 12.2ounce

Oscilloscope Specifications:
Real-tim sample rate: 2.5MS/s
Anolog bandwidth: 0-200kHz
Input resistance: 1MΩ
Coupling: AC/Direct current
Test voltage ranges:
1:1 probe: 80Vpp (±40V)
10:1 probe: 800Vpp (±400V)
Vertical sensitivity: 10mV/Div~10V/Div(in 1-2-5 increments)
Vertical displacement: adjustable, with indication
Horizontal time base ranges: 10us/Div~500s/Div (in 1-2-5 increments)
Trigger mode: automatic, regular, single
Tigger type: rising edge. falling edge
Trigger level: adjustable, with indication
Waveform freeze: yes (HOLD function)
Automatic measurement: maximum, minimum, average, rms, peak-to-peak, frequency, period, duty cycle
PWM output: FRQ: 0~80KHz, duty cycle: 0~100%, amplitude: 5.0V

Electronic Component Tester Specifications:
Capacitance measuring ranges: 25pF~100mF(capacitance value, loss factor Vloss)
Resistance measuring ranges: 0.01Ω~50MΩ
Inductance measuring ranges: 10uH~1000uH
Battery measuring ranges: 0.1~4.5V
Input voltage: 0~16V
PWM output: 1.5KHz~9.99MHz


فيديو :  https://www.youtube.com/watch?v=yvloXvo2n9g

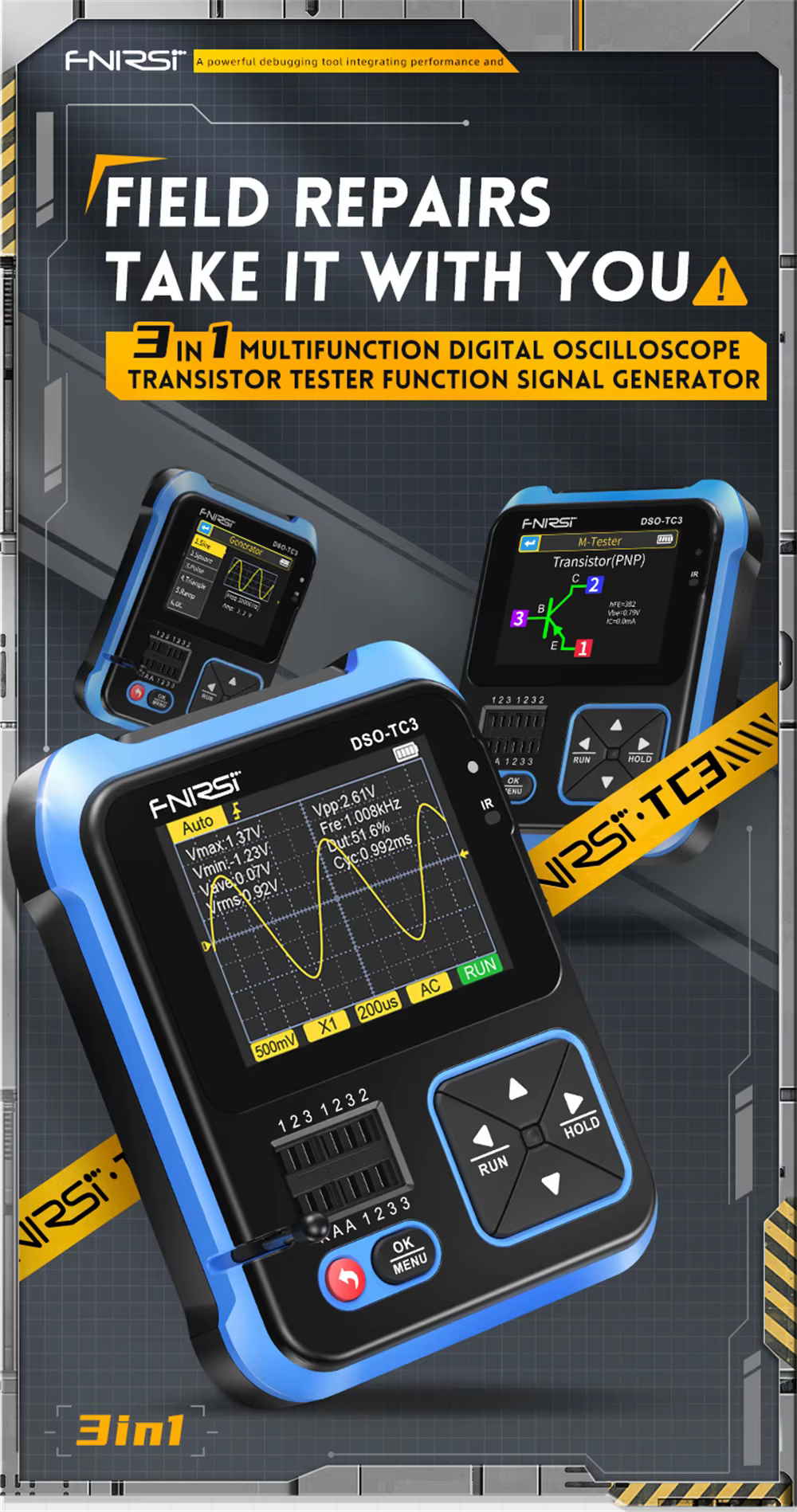

راسم إشارة + فاحص عناصر الكترونية + مولد إشارة

FNIRSI DSO-TC3 Mini Handheld Digital Oscilloscope Transistor Tester Signal Source 3in1 Multifunction Electronic Component Tester

Specifications:

Name: 3 in 1 Digital Oscilloscope
Material: ABS
Type: standard configuration, high configuration (optional)
Display: 2.4 inches TFT color screen
Battery: Built-in 1500mah rechargeable lithium battery (included)
Charging interface: USB Type-C, +5V
Digital Oscilloscope: 10MSa/s
Real-time sample rate: 500Khz
Analog Bandwidth: 1ΜΩ
Input resistance: Alternating Current/Direct Current
Coupling method: 400V

Test voltage ranges: 10mV-10V
Vertical Sensitivity (x1): 1us-10s

Horizontal time base ranges:
Trigger mode: Auto / Normal / Single
Trigger type: Rising edges / Falling edges
Waveform Freeze: Yes
Automatic measurement: Yes

Transistor Tester:
Capacitor: 25pF~100mF
Resistor: 0.01Ω ~ 50ΜΩ
Inductor: 10uH~1000uH
Battery: 0.1~4.5V
Input voltage: 0~40V
DS18B20: 0-85℃
DHT1: 0-60°C/5-95%

Signal Generator:
Sinewave: 1-10KHz/0-3.3V/50%
Squarewave: 1-100KHz/3.3V/50%
Pulsewave: 1-100KHz/3.3V/0-100%
Trianglewave: 1-10KHz/0-3.3V/50%
Ramp: 1-10KHz/0-3.3V/0-100%
Direct current: 0-3.3V

Item size: 110 * 76 * 30mm / 4.33 * 2.99 * 1.18in
Package size: 140 * 125 * 55mm / 5.51 * 4.92 * 2.17in
Package weight:
Standard configuration: 300g / 10.58ounce
High configuration: 345g / 12.17ounce
فيديو : https://www.youtube.com/watch?v=L_FaQnaDv5I

راسم إشارة محمول

ET120M handheld color analog oscilloscope 120MHz frequency 500Msps sampling rate

فيديو : https://www.youtube.com/watch?v=PN05fwOxXNU

مولد إشارة

XR2206 High Precision Function Signal Generator DIY Kit Sine/Triangle/Square Output 1Hz-1MHz Adjustable Frequency Amplitude

Features:
High resolution, can generate sine/triangle/square waveforms.
Frequency range: 1Hz-1MHz.
Adjustable frequency and amplitude.
Frequency adjustment features coarse tuning and fine tuning.
Wide power supply range, use 9-12V external power or 9V battery(NOT Included).
All are through hole components, easy for installation.

Specifications:
Voltage Supply: 9-12V DC Input
Waveforms: Square, Sine & Triangle
Impedance: 600 Ohm + 10%
Frequency: 1Hz-1MHz
SINE WAVE
Amplitude: 0-3V at 9V DC Input
Distortion: Less than 1% (at 1KHz)
Flatness: +0.05dB 1Hz - 100kHz
SQUARE WAVE
Amplitude: 8V (no load) at 9V DC Input
Rise Time: Less than 50ns (at 1KHz)
Fall Time: Less than 30ns (at 1KHz)
Symmetry: Less than 5% (at 1KHz)
TRIANGLE WAVE
Amplitude: 0-3V at 9V DC Input
Linearity: Less than 1% (up to 100KHz) 10mA
Package Size: Approx. 12 * 8 * 2cm / 4.72 * 3.15 * 0.8in
Package Weight: 69g / 2.46oz

فيديو : https://www.youtube.com/watch?v=DYxpprCf06k

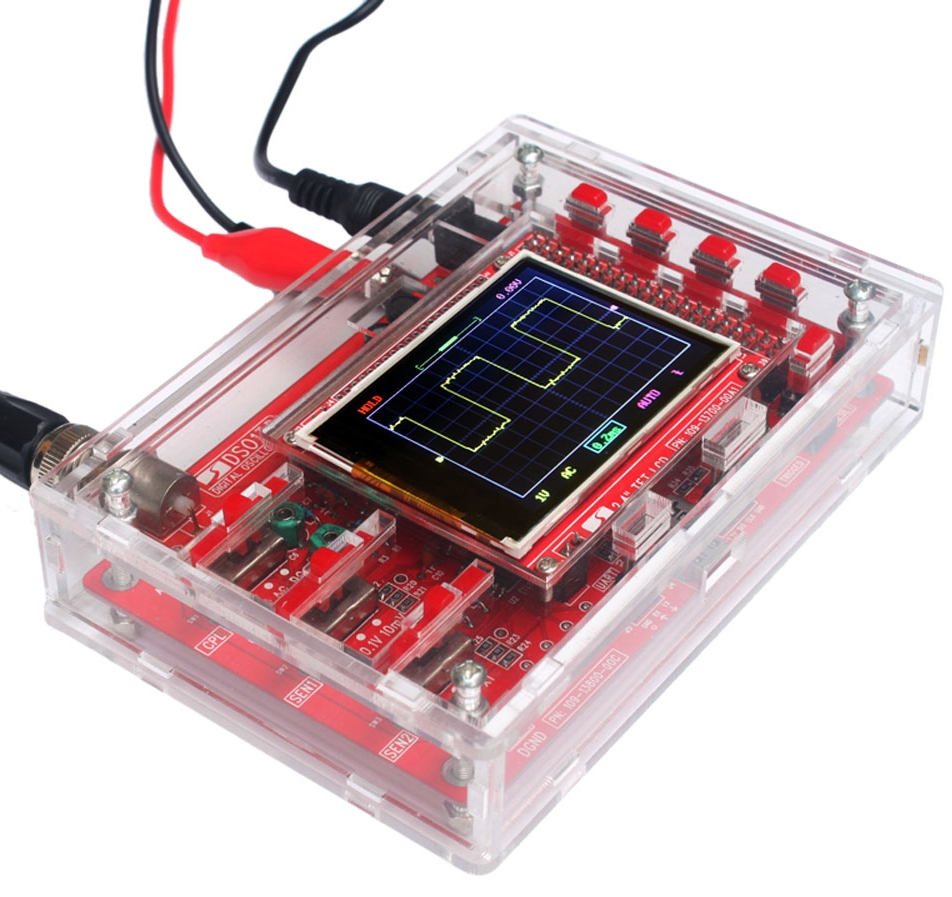

راسم إشارة DSO138

فيديو توضيحي :  https://www.youtube.com/watch?v=rGYiJdSWL7w

جاهز للاستخدام ضمن علبة شفافة كما في الصورة

Features:
2.4-inch color TFT LCD with 320*240 resolution displays parameters clearly.
Make MCU and LCD stay in one PCB to avoid problematic pin-header connections.
Overall size of DSO138mini is only 2/3 of DSO138 so it is much more suitable for hand-held operation.
Improvements in power supply and mechanical structure, it can run on USB or a single cell 3.7V Li-ion battery.
Can be connected with computer for data transmission.
DSO138mini has improvements in firmware, too.
Its trigger can work reliably under 10us and 20us timebase settings.
With Auto/Normal/Single trigger modes, easy to capture the moment waveform.
Available rising or falling edge trigger.
Observable previous trigger waveform (negative delay).
Can freeze at any time waveform display (HOLD function).
Waveform storage function: will not lose the waveform after power off.
Short-circuit and open-circuit detection: can help the user find out the soldering error.
TFT controller recognition function.
All SMD parts has been soldered and the MCU has been programmed.
Comes with a transparent case, can protect the oscilloscope well.


Specifications:
Material: PCB
Number of Channel: 1
Analog Bandwidth: 0-200KHz
Sensitivity Range: 10mV/Div - 5V/Div
Sensitivity Error: <5%
Maximum Input Voltage: 50Vpk (1X probe)
Input Impedance: 1M ohms/20pF
Resolution: 12 bits
Record Length: 1024 points
Coupling Modes: DC / AC / GND
Maximum Real-time Sampling Rate: 1MSa/s
Time Base Range: 10us/Div - 500s/Div
Trigger Modes: Auto, Normal, and Single
Trigger Position: Center of Buffer
Display: 2.4" Color TFT LCD with 320*240 Resolution
Supply Voltage: DC 3.5V - 5V
Current Consumption: ~120mA @ 5V
Main Board Size: Approx. 70 * 53mm / 2.76 * 2.1in
Analog Board Size: Approx. 81 * 70mm / 3.19 * 2.76in
Package Size: Approx. 11 * 9 * 2.3cm / 4.33 * 3.54 * 0.91in
Package Weight: Approx. 124g / 4.37oz

 Probes مجسات

مجسات راسم إشارة

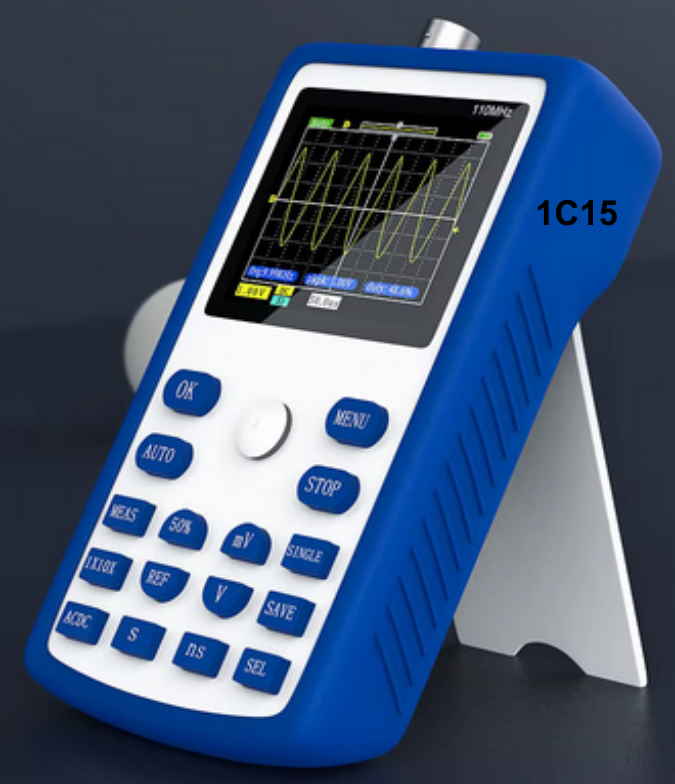

راسم إشارة محمول

FNIRSI-1C15 Handheld Mini Portable Digital Oscilloscope 110M Bandwidth 500MSps Sampling Rate 1Khz Square Wave Waveform Storage



Model : FNIRSI-1C15

Number of channels : 1

Screen size : 2.4 inches

Screen Resolution : 320*240

Analog bandwidth : 110M

Sampling Rate : 500M

1k Hz self-checking square wave：Stand by

Rise Time : <3ns

Storage depth : 12 Kpts

Time base range : 5ns-10s

Vertical sensitivity : 20mv/div-100v/div

Trigger mode : Auto/Normal

Trigger type : Rising/Falling

Display mode : YT/scroll

Afterglow time : None/1s/∞

Charging method : 5V/800mA

Voltage measurement range : ± 40v (x1 file);± 400v (x10 file)

Channel coupling : AC-DC

One-button automatic : Stand by

Waveform measurement : 14 types

Measurement accuracy : ±2%

Reference waveform : Stand by

Waveform save : Stand by

Frequency accuracy : ±0.01%




1 * FNIRSI 1C15 oscilloscope

1 * P6100 High Voltage Probe

1 * Allgator Clip Probe

1 * Micro USB charging cable

1 * English User Manual

1 * Cloth bag

فيديو : https://www.youtube.com/watch?v=Dmius4BB4Pw

راسم إشارة + أفومتر + مولد إشارة

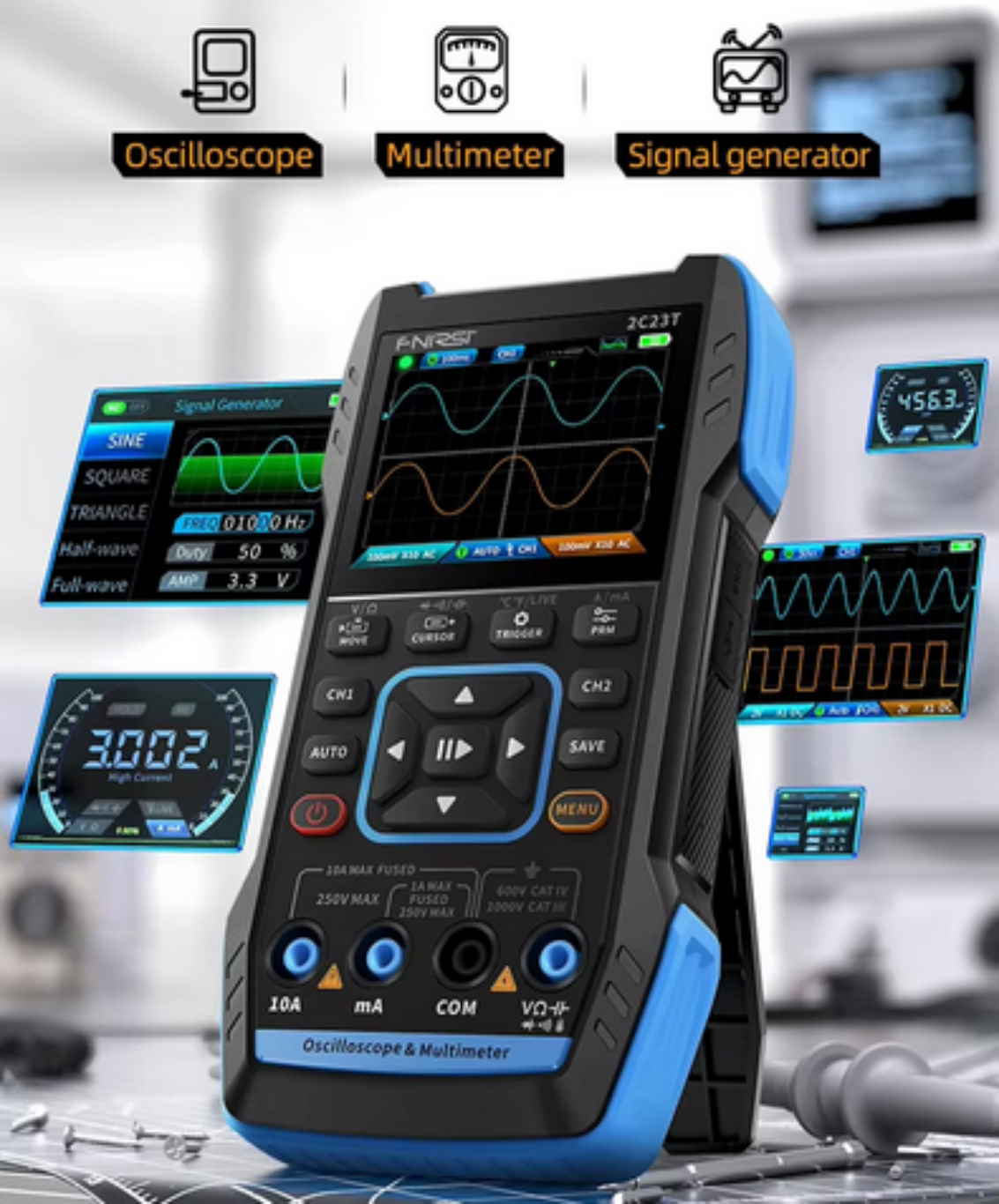

FNIRSI 2C53T 2C23T Upgrade 3in1 Oscilloscope Multimeter Signal Generator 50MHz Bandwidth 250MS Rate Dual Channel 20000 Counts



Basic Parameter

Product Model：2C53T

Display：2.8 inch HD color screen

Charging specifications: TYPE-C (5V/1A)

Battery: 3000mAh lithium battery




Oscilloscope Parameter

Channel: Dual channel

Sample Rate: 250MS/s

Analog Bandwidth: 50M(dual channel independent 50M)

Storage Depth: 1Kpts

Impedance：1MΩ

Time Base Range：10ns-20s

Vertical Sensitivity：10mV/div-10V/div（X1）

Maximum Measured Voltage：±400V

Trigger Mode：AUTO/Normal/Single

Trigger Type：Rising edge, Falling edge

Display Mode：Y-T/Rolling/X-Y

Coupling Method：AC/DC

Persistence：OFF, 500ms, 1s, ∞

Math：8 Basic Operations + FFT

Waveform Screenshot Save：Supported

Export Waveform Image：Supported

Cursor Measurement：Supported




Multimeter Parameter

DC Voltage：1.9999V/19.999V/199.99V/1000V

AC Voltage：1.9999V/19.999V/199.99V/750.0V

DC Current：19.999mA/199.99mA/1.9999A/9.999A

AC Current：19.999mA/199.99mA/1.9999A/9.999A

Resistance：19.999MΩ/1.9999MΩ/199.99KΩ/19.999KΩ, 1.9999KΩ/199.99Ω

Capacitance: 999.9uF/99.99uF/9.999uF/999.9nF/99.99nF/9.999nF/9.999mF/99.99mF

Temperature: (-55~1300℃)/(-67~2372℉)

Diode: YES

Continuity test: YES




Signal Generator Parameter

1. 13 Signal waveforms: Output waveform: sine wave, rectangular wave, sawtooth wave, half wave, full wave, positive step wave, reverse step wave, exponential rise, exponential fall, DC, multi-audio, Sinker pulse, Lorentz wave

2. Output frequency: 0-50KHZ

3. Output amplitude: 0-3V

4. Output duty cycle: 0-100%

فيديو : https://www.youtube.com/watch?v=jxkbga_Xw58

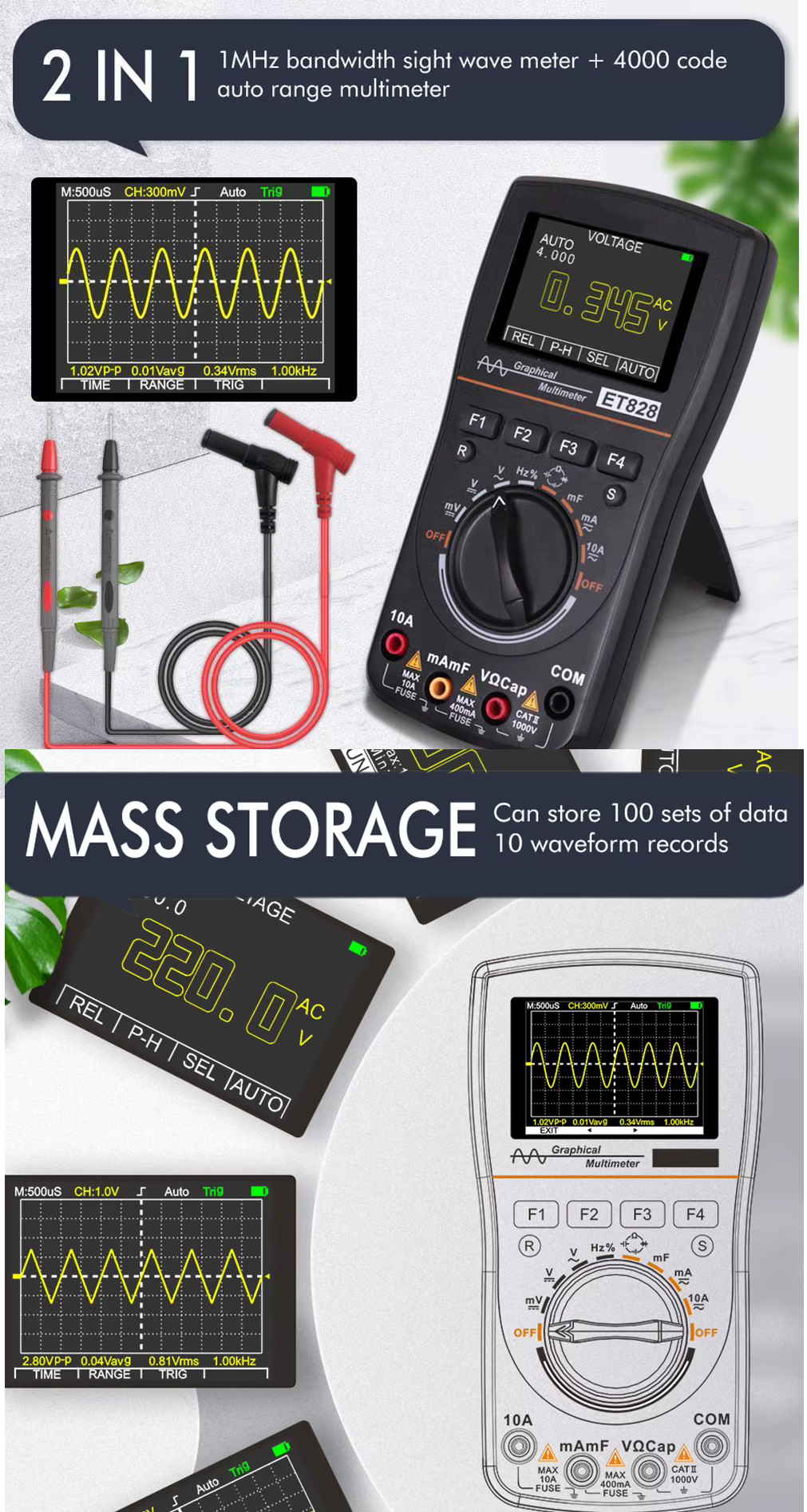

راسم إشارة + أفومتر + فاحص ترانزيستور

ET828 3 in 1 Digital Oscilloscope Multimeter Transistor Tester 2.5Msps Sampling Rate Intelligent Graphical Oscilloscope Meter





ET828 2 in 1 Oscilloscope Multimeter Digital 1MHz 2.5Msps Color Screen DC/AC Current Voltage Resistance Frequency Diode Test

Meter Tools with Analog Bandwidth
Feature:
1. 2.5Msps high-speed sampling, 1MHz analog bandwidth (only ACV oscilloscope), 4000 code digital multimeter.
2. One-key oscilloscope, there are three waveform scanning modes: auto/normal/single.
3. Data waveform retention function during measurement can store 100 groups of data and 10 waveforms.
4. The parameters can be set independently during waveform measurement, such as time base, amplitude, waveform scan mode, etc.
5. Relative value measurement can effectively eliminate lead resistance, distributed capacitance or interference signals.
6. Multimeter functions include DC/AC voltage/current, resistance, capacitance, frequency, duty cycle, diode/continuity test.
7. Automatic/manual range switching, real-time data and stored data are displayed on the same screen.
8. Overload protection 500mA/10A double fuse, double protection meter.
9. Automatic sleep function without operation for 15 minutes.
10. Adopt 2.4 inch color screen display, the display effect is clear.
11. Panel calibration, memory calibration coefficients do not need potentiometer adjustment, higher reliability.

Specification:
Instrument characteristics and technical parameters:
Display: 240X320 color screen
Observation area: 49.0mm x 36.72mm/1.93x1.45in
Backlight: Always on
Input resistance: about 10MΩ
Battery: 3 X AA batteries (not included)
Automatic sleep: 15 minutes or disabled
Static working current: about 65mA
Sleep current: about 35uA
Continuous use time: more than 10 hours, (battery capacity/about 65mAh)
Storage capacity: 100 DMM data, 10 OSC waveform records
Use environment: 0 - +40 degrees Celsius; <75%RH
Storage conditions -10 -  +60 degrees Celsius; <90%RH
Dimensions: 160x83x32mm/6.3x3.27x1.26in

Oscilloscope characteristics:
Analog bandwidth: 1MHz (limited to ACV oscilloscope)
Maximum real-time sampling rate: 2.5Msps
Number of channels: 1
Input impedance: about 10MΩ
Vertical sensitivity range: 300mV - 100V/grid
Time base range: 2.5us - 10s/div
Vertical amplitude accuracy: ±(5%+ 0.2div)
Time base accuracy: ±(0.01% + 0.1div)
Scan mode: Auto/normal/single
Trigger edge selection: rising edge/falling edge
Automatic setting: automatically set the time base and vertical amplitude
Automatic measurement function: Vp-p, Vavg, Vrms, Hz
Analog bandwidth: 1MHz attenuated to 5dB
فيديو : https://www.youtube.com/watch?v=xYFKlbDNk4I









راسم إشارة يمكن وضعه في الجيب

ADS5012H Digital 2.4-inch TFT Screen Anti-burn Oscilloscope 3000mah 500MS/s 100MHz Support Waveform Storage

Description:



The ADS5012H is a versatile, highly practical, cost-effective handheld oscilloscope for the maintenance industry and the R&D industry with DANIU's real-time sampling rate of up to 500MS/s and 100MHz analog bandwidth.With full trigger function (single, normal, automatic), it can be used freely for both periodic analog signals and non-periodic digital signals. The built-in high voltage protection module can withstand up to 400V continuous voltage and 600V peak voltage. There is no need to worry about the oscilloscope burnout caused by the high voltage not being probed to the 10X position.Large time base scan mode that monitors slow level changes. Equipped with high-efficiency one-button AUTO, the measured waveform can be displayed without complicated adjustment. Display high-definition LCD screen with 2.4-inch 320*240 resolution TFT full-vision technology, the visual effect is very good. Extremely convenient and fast waveform storage function, built-in 64M storage space, can store up to 2000 waveform pictures, the storage process is simple and fast, save the current waveform anytime and anywhere, just one touch, no cumbersome tips and choices. Powerful waveform file manager, support for thumbnail browsing, viewing, detail viewing, page turning, deletion and more. Built-in 3000mah high-quality lithium battery, can be used continuously for 8 hours when fully charged.The body is equipped with high-quality silicone protective cover, non-toxic and lead-free environmental protection, anti-skid, anti-shock and shockproof, comprehensive protection of the fuselage, soft texture, feel very comfortable.



Key Features:



1:Intelligent anti-burn,1X Can withstand up to 600V withstand voltage

2:Afterglow display technology

3:2.4 inch TFT color display screen

4:100MHz analog bandwidth @ 500MS/s sampling rate(1X = 5MHz,10X = 100MHz)

5:One-button waveform storage

6:Built-in 64M storage space, the maximum storage of 2000 waveform pictures

7:Powerful waveform file manager, support thumbnail browsing, viewing, details view, flip, delete and other functions

8:High measurement voltage range, 1X can measure 0 ~ 80 V, 10X can measure 0 ~ 800V

9:Up to 12 parameters measurement:VPP,VP,Vmax,Vmin,Vavg,Vrms,Frequent,Duty+,Duty-,Time+,Time-,Time

10:At any time, the waveform display (pause function) is frozen

11:Equipped with high efficiency One-button AUTO

12:Complete triggering function (single, normal, automatic)

13:Built in 3000mAh rechargeable lithium battery,Fully charged for 8 hours of continuous use

14:Screen brightness adjustment

15:Memory compression technology, waveform refresh screen does not flicker

16:Anti-slip anti-drop silicone sleeve

17:Ultra small volume, easy to carry



Specifications:



1:Analog band width: 100MHz

2:Maximum real time sampling rate: 500MS/s

3:Vertical sensitivity: 50 mV/div ~ 100 V/div

4:Horizontal time base range: 50S/div ~ 6nS/div

5:Maximum test voltage: 80 V (1X probe), 800 V (10X probe)

6:Storage depth: 128KB

7:Input resistance: 1M

8:ADC precision: 8bits

9:Coupling mode: AC/DC

10:Trigger mode: Single, Normal, Auto

11:Trigger edge: Ascending/descending edge

12:External trigger voltage 0 – 80 V

13:Display: 2.4 inch - 320*240 - TFT process

14:Power supply: 3000 mAh lithium battery

15:Size: 114mm x 74mm x 33mm

16:Weight: 300g

فيديو : https://www.youtube.com/watch?v=WkCN3XpgsfU



راسم إشارة يمكن وصله  مع كمبيوتر + موبايل

C520M PC&Android Virtual Handheld Oscilloscope 2 Channel Bandwidth 20Mhz Sampling data 50M with probe USB cable



  • ✔USB 2.0 high rate transmission, USB powered, no additional power required, plug and play。The waveform can be recorded and saved in a file, and the saved files can be played back and visualized at any time. The playback allows to play/pause the signal or jump to a specific time frame forward and backward

  • ✔Supports for Win XP/7/8/10, both 32-bit and 64-bit version. Automatic recognition and installation of the drivers on for Win 8.1/10 systems。Automatically measurement and display of multiple sets of statistics for both channels: maximum value, minimum value, average value, RMS, frequency, period, positive pulse width, negative pulse width, duty cycle, rise time, peak-to-peak value

  • ✔The software supports screens with high DPI (with the exception of Vista system), to have the best graphic definition also on high-resolution displays.Possibility to take screen-shots of the current software interface and waveform window for later viewing and analysis

  • ✔Normal and Single Trigger can be performed by the hardware at all sampling rates to analyze aperiodic signals.The waveform area can be arbitrarily enlarged and reduced to better observe the waveform details. A little window shows the current zoom position.

  • ✔Real-time acquisition and display of signal data from two independent channels.It is possible to see the preview of the entire acquired data and to locate the position and size of the current selected area. It is convenient for fast moving through the data and to locate new areas of interest

    •

    Product description

    Specification:
    Condition: 100% Brand New
    Material: Plastic
    PC Connection:USB 2.0
    Inputs:2 channels with BNC sockets
    Output reference voltage:1KHz square wave, 1.5Vp, 50% duty cycle
    Highest sampling rate:50 MSa/s each channel
    Vertical resolution:8 Bit
    Voltage Range:±5v with x1 probe, ±50v with x10 probe and ±500v with X100 probe (purchased separately)
    Input coupling:AC / DC
    Time range:50ns ~ 2s
    Triggering conditions:Software trigger
    Rising edge / falling edge according trigger level
    Trigger modes:Automatic, single
    Trigger source:Channel A
    Input resistance:1MΩ impedance  / 25pF input capacitance
    Memory depth:1K-2M bytes per channel
    Overload Protection:± 50 V
    Power consumption:< 2 Watts
    Automatic measurement:Maximum, minimum, peak-to-peak, frequency, average, RMS, rise time, positive pulse width, negative pulse width, duty cycle
    Weight:Approx. 488g / 17.2oz
    Package List:
    1 x Digital Oscilloscope
    2 x High Pressure Probe
    1 x USB Cable
    1 x Compensation Adjustment Lever
    8 x Identification Ring (Random Color)
    2 x Tip Locating Sleeve





    راسم إشارة + محلل طيف + مسجل معلومات + محلل منطقي

    يوصل مع كمبيوتر

    INSTRUSTAR ISDS205C 20M 48MS/s USB Oscilloscope+ Logic Analyzer+ Spectrum Analyzer+ Data Record



    Features:

    • ISDS205C dual-channel digital oscilloscope, well-designed bandwidth of 60M, 200M sampling rate, 2 channels, alternating support X, Y and XY alternating pattern of two-channel virtual oscilloscope,spectrum analyzer, data recorder and logic analyzer

    • The logic analyzer supports Serial Peripheral Interface, IIC, UART and other 16 protocol analysis.

    • The device communicates with PC via high-speed USB2.0.

    • 4 in 1, multifunctional, with the functions of digital oscilloscope, spectrum analyzer, data recorder and logic analyzer

    • Super small size, easy to carry, can be put directly into the computer bag, easy to travel and teaching

     Specification:
    Digital Oscilloscope ISDS205C
    Brand: INSTRUSTAR
    Channels: 2
    Impedance: 1MΩ 25pF
    Coupling: AC/DC
    Vertical resolution: 8Bit
    Gain range: -6V ~ 6V(probe X1) -60V ~ 60V(probe X10)
    Vertical accuracy: ±3%
    Timebase range: 1ns-20s
    Input Protection: Diode,50Vpk
    Autoset: Yes(10Hz to 20MHz)
    Trigger Mode: Auto,Normal and Signal
    Trigger Type: No,Rising edge,Falling edge, Rising edge or Falling edge
    Trigger level: Yes
    Trigger Source: CH1, CH2
    Buffer Size: 1MB/CH
    Bandwidth: 20MHz
    Max sample: 48MS/s
    Vertical mode: CH1, CH2, ADD, SUB, MUL
    Display Mode: X,Y-T and X-Y
    Measurements: Yes
    Wave save: Osc(Private),Excel and Bmp
    Spectrum Analyzers
    Bandwidth: 20MHz
    Algorithm: FFT(18 windows),Correlation
    FFT points: 8-1048576/CHN
    FFT measure: Harmonic(1-7),SNR,SINAD,ENOB,THD,SFDR
    Filter processing
    FIR filter supports arbitrary range of frequency sampling method , and Rectangle, bartlett, triangular, cosine, hanning, bartlett_hanning, hamming, blackman, blackman_Harris, tukey, Nuttall, FlatTop, Bohman, Parzen, Lanczos, kaiser, gaussand dolph_chebyshev, window method design.IIR filter support "Butterworth", "Chebyshev I", "Chebyshev II", "Elliptic" type of filter design.
    Data Recorder
    Impedance: 1MΩ 25pF
    Coupling: AC/DC
    Vertical resolution: 8Bit
    Gain range: -6V ~ 6V(probe X1) -60V ~ 60V(probe X10)
    Sample: 1 channel : 1K~24M Hz 2 channel : 1K~16M Hz
    Channel:16
    8 channel: 250K~24M Hz, 16 channel: 250K~16M Hz
    Sample points: 1M-2GB
    Logic Analyzer
    Channel: 8
    Sample: 25K~24M Hz

    فيديو :  https://www.youtube.com/watch?v=KkDXzeUrTxs

    مولد اشارات FG-100

    FG-100 DDS Function Signal Generator

    Frequency Counter 1Hz - 500KHz

    Small size, multiple functions, simple operation, easy to carry.

    With an oscilloscope, which can be used in electronic circuit experiment and debugging, the frequenc

    Due to the good precision of DDS and frequency stability, is also very suitable for oscilloscope swe

    COLOR:white

    Material:metal

    With an oscilloscope, which can be used in electronic circuit experiment and debugging, the frequency characteristics of audio amplifier and pulse response of test and measurement.

    Due to the good precision of DDS and frequency stability, is also very suitable for oscilloscope sweep time calibration factor. Square wave output also suit for oscilloscope attenuator and probe pulse adjustment, etc

    The main output waveform : sine wave and square-wave, Triangular wave, sawtooth wave.

    Maximum output amplitude : +/- 10Vpp (no-load)

    Output impedance : 50Ohm+/-10%

    Dc bias : +/- 10V (no-load)

    Display : LCD1602

    Resolution : 1 Hz

    Power supply : DC 3. 5-10V

    Output frequency range :

    Sine wave : 1Hz-500KHz

    Square-wave : 1 Hz - 20kHz (the valid range)

    Triangular wave : 1 Hz - 20KHz (the valid range)

    Sawtooth wave : 1 Hz - 20kHz (the valid rang

    الأسعار في قسم المبيعات : واتس أب 0969515995 أو هاتف أرضي : 2251161 دمشق

     حتى تحصل على جواب سريع تواصل مع قسم المبيعات برسالة واتس أب

     ..

    فيديو  : https://www.youtube.com/watch?v=o83h7vSCYhg
