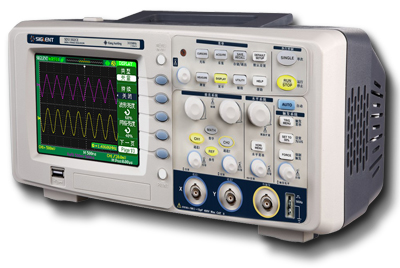

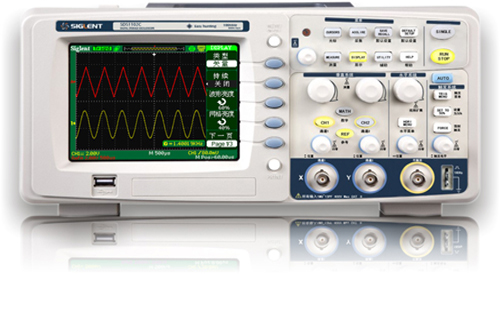

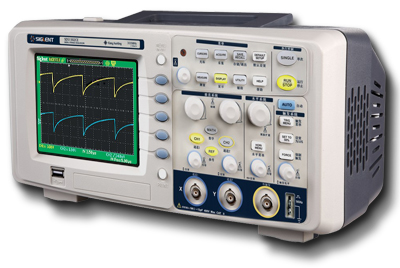

SDS1022C

Bandwidth

25MHZ

Channel

2 channels +1 ext trig

Real Time Sampling

500MSa / s

Equivalent Sampling Rate

10GSa / s

Memory Depth

4K/CH

Rise time

<14ns

Input Impedance

1MΩ | | 17Pf

Sec / div Range

25ns/div-50s/div

Roll: 100ms-50s/div

Vertical Sensitivity

2mv-5v/div (1-2-5 sequence)

Vertical Resolution

8bit

Display

Color TFT (320 * 234) 5.7 "LCD

CHARACTERISTIC:

● The volume exquisite and it is convenient for carrying.

● Use Colored TFT LCD, the waveform display is clearer and stable.

● Dual channel-channel bandwidth: 25MHZ.

● The real time sampling rate is 500MSa / s.

● Memory depth of SDS1000C is 4K.

● Trigger Modes: Edge, Pulse, Video, Slope and Alternative trigger modes.

● Unique Digital Filter function and Waveform recorder function

● Pass / Fail function

● Thirty two parameters Auto measure function.

● Cursor measure covers Manual mode, Track mode and Auto mode.

● Channel waveform and it's FFT waveform display on split screen.

● Pop-up Menu display pattern is more convenient for users using it.

● Multiple Language User Interface.

● Support Multilingual online help system

Model / Index	The Common Specifications Of All SDS1000 Series Products
Display	8X12 divides
Waveform Capture Rate	The highest capture rate exceed 1000 times / sec
Input coupling	DC, AC, GND
Input Max voltage	400V(Vpp)
Trigger Types	Edge, Pulse, Video, Slope, Alternative
Trigger Modes	Auto, Normal, Single
Trigger Source	CH1,CH2,Ext,Ext / 5,AC Line
Save / Recall	Provide two groups reference waveforms, twenty groups capture waveforms and twenty groups setups internal save / recall function and USB flash drive Save / Recall function
Auto Measure Types	Vpp, Vmax, Vmin, Vamp, Vtop, Vbase, Cmean, Mean, Vrms, Crms, ROVShoot, FOVShoot, RPREShoot, FPREShoot, Freq, Period, Rise time, Fall Time, + Width,-Width, +Duty, - Duty, BWid, Phase, FRR, FRF, FFR, FFF, LRR, LRF, LFR, LFF
Cousor measure	Manual, Track, Auto
Sample Types	Real Time, Equivalent Time
Averages	4,16,32,64,128,256
Math	+,--,*,Invert
	FFT	Window: Hanning,Hanmming,Blackman,Rectangular
		Sampling Points: 1024 points
XY Mode	Phase Error: ± 3 degrees Support the sampling rate: 5KSa / s~ 200MSa / s (in a 1-2-5 sequence)
Display Model	Main, Window, Window Zoom, Roll, X-Y
Menu Display	2Sec, 5Sec, 10Sec, 20Sec, Infinite
Display Language	Simplified Chinese, Traditional Chinese, English, Arabic, French, German, Russian, Spanish, Portuguese, Japanese, Korean, Italiana
Power Source Voltage	100-240VAC,47HZ-440HZ,50VA Max
Size and Weight	305mm x 154mm x133mm, About2.3kg

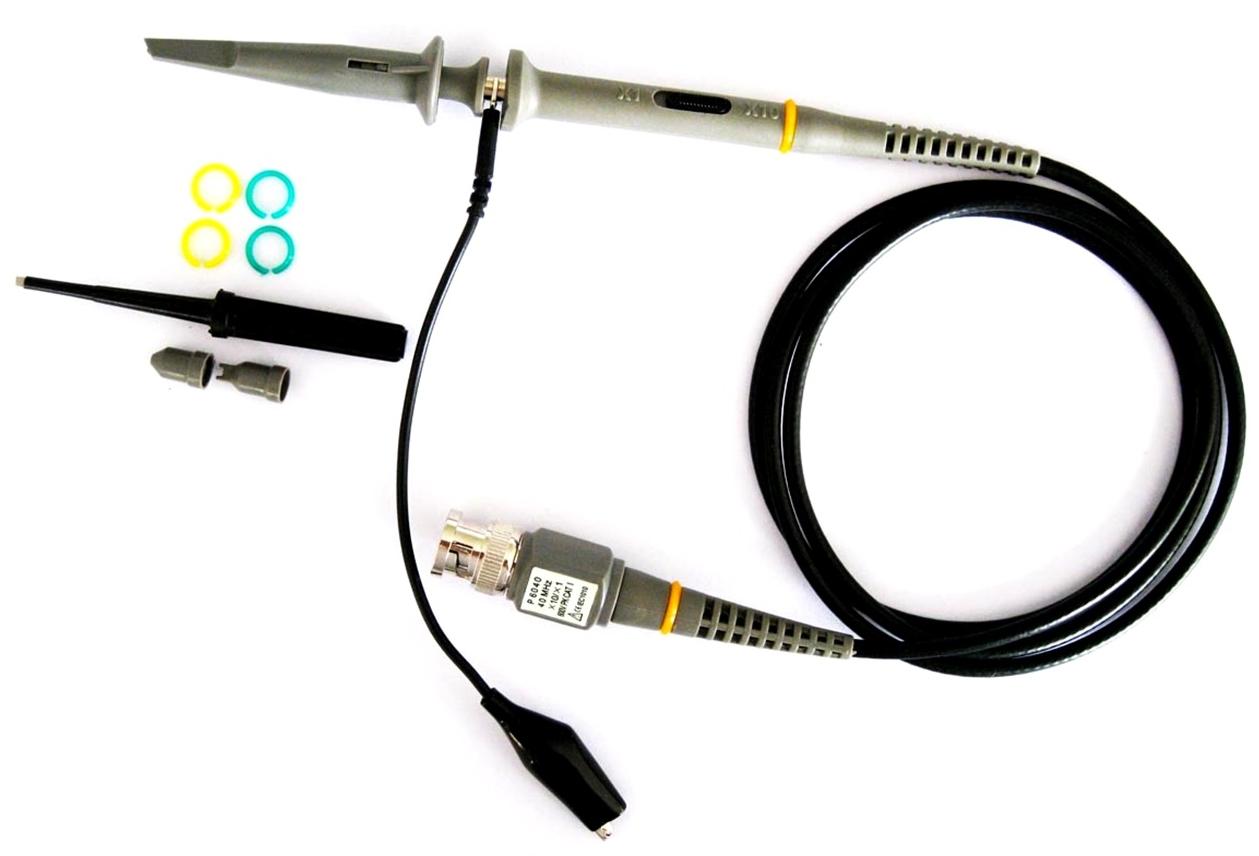

Accessories	(1:1,10:1) Problex2, EasyScope3.0 Computer Software System, Power Cord, USB cable, User Manual, EasyDsoLib software package, USB Host: Support USB flash drive storage USB Device: Support PictBridge compatible printers and PC Remote control
Options	RS-232 Communication Module, Serial Interface Communication Module, Pass / Fail Interface Module
